What Are PCBgogo's PCB Assembly Manufacturing Capabilities?

What is PCB Assembly?

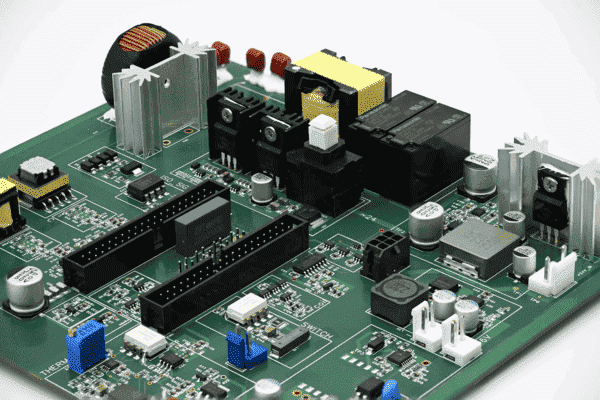

PCBA stands for Printed Circuit Board Assembly. A PCB is a bare circuit board without any components installed, while a PCBA is a completed board populated with components such as resistors, capacitors, integrated circuits, and connectors. These components are mounted using surface-mount or through-hole technology, followed by soldering, inspection, and testing. This assembly process turns a circuit design into a functional electronic module capable of handling tasks such as power delivery, control, and communication. PCB assembly manufacturing quality directly affects the performance, reliability, and service life of the final product.

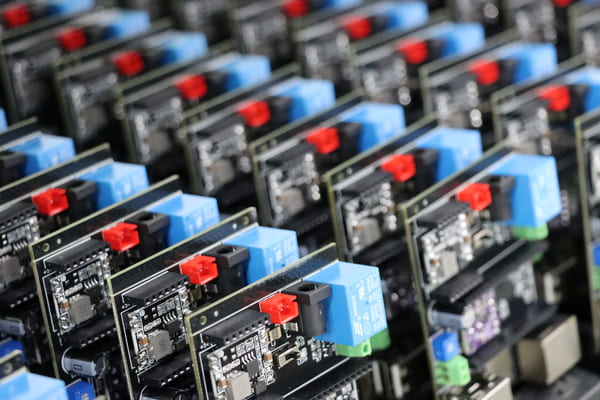

PCBgogo: Your Trusted One-Stop Turnkey PCB Assembly Manufacturer

Whether you are validating a new design or preparing for full-scale production, PCBgogo provides the manufacturing expertise and flexibility needed to move your PCBA project forward with confidence. Our key strengths include:

• Complete PCBA Solutions: Integrated support for component sourcing, PCB assembly, inspection, testing, and final delivery.

• Flexible Production Volumes: Scalable manufacturing for everything from one-off prototypes and small batches to high-volume orders.

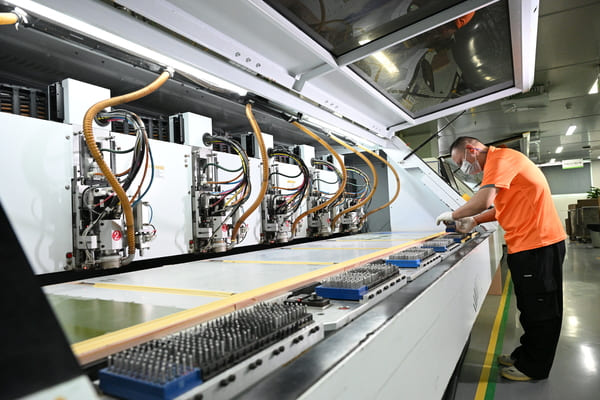

• Advanced Manufacturing Equipment: PCBgogo uses high-precision assembly lines alongside advanced inspection and testing systems to ensure accuracy, efficiency, and consistent product quality.

• Proven Manufacturing Strength: Backed by more than a decade of PCBA manufacturing experience and a production facility spanning over 20,000 m2, PCBgogo has the expertise and capacity to support projects of varying complexity and scale.

• International Certifications: Quality and compliance credentials include IATF 16949, ISO 13485, ISO 9001, ISO 14001, ISO 45001, UL certification, and REACH compliance.

• Cross-Industry Experience: PCB assembly services for medical, automotive, aerospace, consumer electronics, and industrial applications.

The table below provides a detailed overview of PCBgogo's PCB assembly process capabilities and supported production parameters.

PCBgogo's PCB Assembly Service Capabilities

If you have any special requirements regarding materials, stack-up, or other manufacturing processes, submit the PCB assembly quote or contact us via email service@pcbgogo.com for your specific PCB assembly requirements.

PCBgogo - Reliable, High-Quality PCB Manufacturing
       Save time and money with an all-in-one solution for PCB fabrication, assembly, and parts. Reduce vendor coordination, avoid split shipments, and get consistent, reliable quality.      Get Free Quote  >

PCBgogo's Comprehensive PCBA Inspection and Testing

Reliable PCB assembly depends on finding potential defects before they move further into production. PCBgogo combines automated inspection equipment with experienced quality-control teams to monitor every critical stage:

• IQC and First-Article Inspection: Incoming components are checked before production, while first-article LCR testing verifies component values and placement.

• SPI: Full-coverage inspection identifies insufficient, excessive, or misaligned solder paste before component placement.

• AOI and IPQC: In-line and off-line AOI, supported by in-process inspections, detects soldering defects, missing components, placement errors, and incorrect polarity.

• X-Ray Inspection: Hidden solder joints beneath BGA, QFN, and other high-density packages are examined without damaging the assembly.

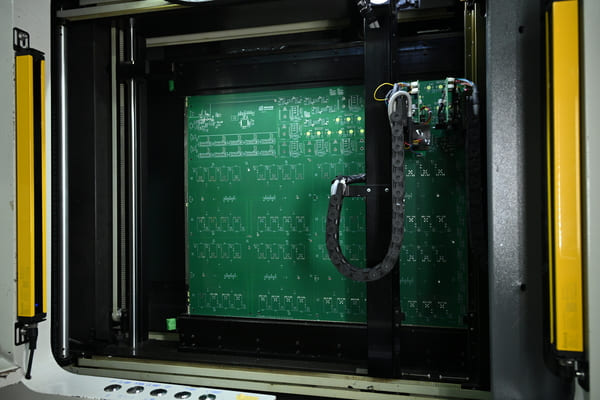

• Flying Probe and Bed-of-Nails Testing: PCBgogo offers both flying probe testing and fixture-based bed-of-nails testing to check for opens, shorts, and continuity issues, covering electrical testing needs from prototype builds through volume production.


• Functional and Final Inspection: Manual QC, customer-defined functional testing, and outgoing QA confirm that completed PCBAs meet the required specifications before shipment.

This multi-stage inspection process helps PCBgogo deliver consistent quality from prototype builds to volume production.

The Standards Behind PCBgogo's Reliable PCB Manufacturing

Reliable PCB and PCBA manufacturing requires more than advanced equipment. It also depends on controlled processes, material traceability, consistent inspection, and disciplined quality management. PCBgogo's certifications cover these critical areas and support the manufacturing requirements of different industries:

• IATF 16949: This automotive quality management standard focuses on defect prevention, production traceability, process control, supplier management, and continuous improvement. By following these requirements, PCBgogo can support the manufacture of PCBs and PCBAs for automotive applications that demand consistent quality and tighter process control.

• ISO 13485: Developed for medical-device quality management, ISO 13485 places greater emphasis on risk control, process validation, documentation, and traceability. These controls enable PCBgogo to support PCB and PCBA production for diagnostic equipment, patient-monitoring systems, portable medical devices, and other medical electronics.

• ISO 9001: As the foundation of PCBgogo's quality management system, ISO 9001 applies across order review, material procurement, production, inspection, corrective action, and customer service. It helps maintain consistent manufacturing quality from prototype builds to repeat and volume orders.

• ISO 14001: This environmental management standard guides the control of chemicals, wastewater, emissions, energy use, and manufacturing waste. Its implementation allows PCBgogo to provide PCB manufacturing through more structured and environmentally responsible production practices.

• ISO 45001: ISO 45001 addresses occupational health and safety risks associated with machinery, chemicals, soldering, and other manufacturing activities. A safer and better-controlled workplace also contributes to stable production, standardized operations, and dependable order fulfillment.

• UL Certification: UL requirements address safety-related aspects of recognized PCB materials and constructions, including flammability and electrical performance. PCBgogo can therefore support PCB projects that require UL-recognized manufacturing within the applicable product and certification scope.

• RoHS and REACH Compliance: These requirements control hazardous substances and chemicals used in electronic products. Through compliant laminates, surface finishes, soldering materials, and components, PCBgogo helps customers manufacture PCB and PCBA products intended for markets with strict environmental and material-compliance requirements.

Together, these certifications connect PCBgogo's production capabilities with the specific expectations of automotive, medical, industrial, aerospace, and consumer electronics projects. They provide a stronger manufacturing foundation for customers who require traceable materials, controlled processes, consistent quality, and documented compliance from prototyping through volume production.

PCB Assembly FAQ

1. What PCB assembly services does PCBgogo offer?

PCBgogo provides one-stop PCBA services covering PCB fabrication, component sourcing, assembly, inspection, and testing. Available assembly options include SMT, through-hole, and mixed-technology assembly for both prototypes and production orders.

2. Can PCBgogo assemble prototypes and low-volume orders?

Yes. PCB assembly orders can start from a single board, making the service suitable for design validation, engineering samples, and early-stage product development. Once the design is ready, production can scale to small-batch or high-volume manufacturing without changing suppliers.

4. What files are required for a PCB assembly quotation?

You will normally need to provide your PCB design files, Bill of Materials (BOM), and pick-and-place file. Schematics, assembly drawings, 3D files, and special manufacturing instructions are also recommended for boards with polarity-sensitive components, unusual packages, or specific testing requirements. Review the PCBA file requirements.

5. How quickly can PCBgogo complete a PCB assembly order?

Expedited PCB assembly can be available in as little as 24 hours, while standard prototype assembly typically takes three to four days. The actual lead time depends on board complexity, order volume, component availability, inspection requirements, and whether component sourcing is included. A confirmed production schedule is provided after the project files and BOM have been reviewed.
