EV Automotive PCB Assembly: Manufacturing Challenges and Solutions

Electric vehicle programs live or die on electronics reliability. Every inverter, battery management system, onboard charger, and ADAS module depends on a printed circuit board assembly (PCBA) that can survive a decade of vibration, thermal cycling, and high-voltage stress without a single field failure. For automotive supply chain and procurement teams, sourcing that assembly is no longer a simple RFQ exercise — it's a qualification process that touches design review, material traceability, IATF 16949 compliance, and long-term capacity planning.

This article breaks down the manufacturing challenges specific to EV PCB assembly and the practical solutions that qualified contract manufacturers use to solve them — so procurement teams know exactly what to evaluate before awarding a program.

Why EV PCB Assembly Is a Different Category of Sourcing

Consumer electronics assembly and automotive PCB assembly are not the same discipline. EV boards carry higher currents, operate across wider temperature ranges, and must meet a 10–15 year service life inside a moving vehicle. A single defect in a battery management system board or traction inverter can cascade into a safety event, not just a returned product. That risk profile is why OEMs and Tier 1 suppliers require assembly partners who understand automotive-specific design constraints, not just general SMT capability.

For procurement teams, this means supplier evaluation criteria has to expand well beyond price and lead time to include process control, certification status, and documented failure-analysis capability.

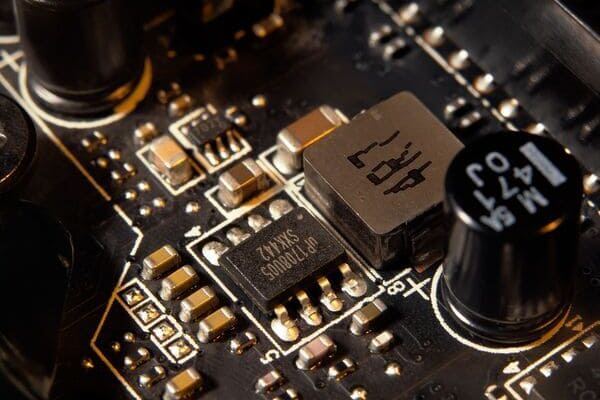

Key Manufacturing Challenges in EV PCB Assembly

1. Thermal Management Under High Power Density

Power electronics such as onboard chargers (OBC), DC-DC converters, and traction inverters push far more current through a board than typical consumer designs. Concentrated heat at switching components can degrade solder joints, warp substrates, and shorten component life if it isn't engineered out from the start.

2. Vibration, Shock, and Thermal Cycling

A vehicle PCB experiences constant micro-vibration from the road plus large temperature swings between a cold start and a fully loaded battery pack under summer heat. Repeated expansion and contraction fatigues solder joints and via structures over time, which is why automotive assembly demands different solder alloys, underfill strategies, and mechanical support than consumer-grade builds.

3. High-Voltage Isolation and Safety Clearance

With battery architectures now routinely operating at 400V and increasingly 800V, creepage and clearance distances, conformal coating, and isolation barrier design become safety-critical rather than optional. Any shortcut here creates arcing risk and potential liability exposure for the OEM and its suppliers.

4. Automotive-Grade Component Sourcing and Supply Volatility

AEC-Q qualified components, particularly automotive-grade MOSFETs, MCUs, and passives, have historically faced longer lead times and tighter allocation than commercial-grade parts. Procurement teams need assembly partners with resilient sourcing networks and transparent bill-of-materials management to avoid line stoppages.

5. Qualification, Traceability, and Documentation Burden

IATF 16949 quality management, AEC-Q100/Q200 component qualification, and PPAP (Production Part Approval Process) documentation are standard OEM requirements. Full lot-level traceability — from raw copper-clad laminate to the finished assembly — must be recoverable instantly in the event of a field issue or audit.

6. Mixed Technology and Design Complexity

Many EV boards combine surface-mount and through-hole components, heavy copper for power sections, and fine-pitch components for control logic on the same board. Assembling all of this reliably requires process flexibility that general-purpose contract manufacturers often lack.

The table below summarizes how these challenges translate into procurement risk:

How Manufacturers Solve These Challenges

Design for Manufacturability (DFM) Collaboration

Experienced automotive PCB assembly partners review designs before production — checking thermal relief, via placement, and creepage/clearance against IPC and automotive standards — catching reliability issues at the design stage rather than after a failed field unit.

Advanced Materials and Process Control

• High-Tg and thermally conductive laminates: selected to withstand sustained heat from power components without delaminating.

• Heavy copper and thick-film processing: engineered for high-current power sections alongside fine-pitch signal layers.

• Controlled solder profiles and underfill: applied specifically to reduce solder joint fatigue under vibration and thermal cycling.

Rigorous Inspection and Test Coverage

• Automated Optical Inspection (AOI): catches placement and soldering defects at every stage of the line.

• X-ray inspection: verifies hidden solder joints under BGAs and QFNs that are invisible to the naked eye.

• In-Circuit Test (ICT) and Functional Test (FCT): confirm electrical performance before a board ever leaves the facility.

Full Traceability and Documented Quality Systems

IATF 16949-certified manufacturers maintain lot-level traceability from incoming material to final shipment, supported by PPAP documentation packages, so any field issue can be traced back to a specific process step, machine, or material lot within hours rather than weeks.

Scalable Capacity from Prototype to Volume Production

EV programs move through multiple stages — engineering validation, design validation, production validation, and mass production — often on compressed timelines. Manufacturers with flexible, scalable lines let procurement teams move from a handful of prototype boards to full production runs with the same qualified process, avoiding a disruptive re-qualification when volumes ramp.

What Procurement Teams Should Look for in an EV PCB Assembly Partner

• Documented IATF 16949 and ISO 9001 certification, with automotive program references

• AEC-Q100/Q200 component qualification and transparent BOM sourcing practices

• Demonstrated experience with high-voltage isolation and power electronics assembly

• Full AOI, X-ray, and functional test coverage as standard, not optional add-ons

• Lot-level traceability and rapid failure-analysis turnaround

• Capacity to scale from prototype quantities to production volume without re-qualification

• Responsive engineering support for DFM feedback before production starts

Partnering with PCBGoGo for EV PCB Assembly

PCBGoGo supports automotive and EV electronics programs with PCB fabrication and assembly services built around fast turnaround, rigorous quality control, and engineering support at every stage — from prototype builds through production-volume runs. Our team works directly with procurement and engineering stakeholders on DFM review, component sourcing, and full inspection and test documentation, so your EV program moves from design to production without sourcing risk slowing it down.

Whether you're qualifying a new supplier for a battery management system, onboard charger, or ADAS module, PCBGoGo's assembly capabilities are built to meet the reliability and traceability standards your program depends on.

Conclusion

EV PCB assembly carries a fundamentally higher bar than consumer electronics: thermal management, vibration resistance, high-voltage safety, and full traceability all have to be engineered in from the start, not inspected in after the fact. For procurement teams, the winning strategy is qualifying assembly partners on process control and documentation — not just unit price — because the true cost of an EV electronics failure is measured in recalls and lost program trust, not just piece cost.

Ready to qualify a reliable EV PCB assembly partner for your next program? Reach out to PCBGoGo's engineering team to discuss your requirements and request a quote.

FAQ

How long does EV-grade PCB assembly typically take?

Prototype builds usually ship in 3–7 days; production runs depend on component lead times but typically run 2–4 weeks once materials are on hand.

What certifications should I ask a supplier to prove, not just claim?

Request the current IATF 16949 and ISO 9001 certificates plus a sample PPAP package — not just a logo on their website.

Can one supplier handle both prototypes and mass production?

Yes, if their line is qualified end-to-end. This avoids re-qualifying a new process when you scale from EVT/DVT into PVT and mass production.

How is component shortage risk handled for automotive-grade parts?

Qualified partners maintain multiple approved sources per part, transparent BOM visibility, and proactive lead-time flagging before it impacts your schedule.

What happens if a field failure occurs after shipment?

With lot-level traceability, the root cause can typically be isolated within hours, and affected lots identified precisely — not a full-batch recall guess.

Does higher quality control always mean higher cost?

Not necessarily. The added inspection and documentation cost is usually offset by avoiding warranty claims, recalls, and line-down events later.
