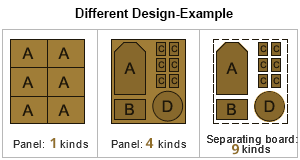

it means- we will charge extra panel costs when there are different
kinds in 1 PCB design. For same kinds, it needn't charge.
The number of conductive layers
The full board are by only one single board or be arrayed with the same or different PCBs
If you enter in units of inches and press the [Convert] button, it will be converted into units of millimeters in the quotation form.
Input the order quantity
One of commonly used dielectric base materials
The FPC thickness does not include the thickness of stiffener and 3M tape.
Minimum width of any conductors/Minimum distance between any two adjacent conductors
Min Hole Size
Minimum diameter of the holes and pads
Color of mask used to cover the PCB
The color of text printed
The gold-plated terminal of a card-edge connector
*Unusual parameters will result in a small price increase and longer lead time.
Material added to a flex circuit board to rigidize particular areas or perform other special functions, such as increase overall thickness; protect solder joints; heat dissipation and so on.
Extra process to exposed copper to help solderability
0.5 oz. Cu (18µm)
1 oz. Cu (35µm)
1.5 oz. Cu (53µm)
2 oz. Cu (70µm)
The weight (in ounces) of copper present in one square foot of area. This parameter indicates the overall thickness of copper on the outer layer.
Electrical test, performed with flying probes for smaller quantities or a electrical test fixure for the larger ones.
EMI shielding film
It is a kind of electrical functional film with high-performance shielding effectiveness.
Confirm work file
work file is the Gerber file after PCBGOGO optimizes your PCB project, and we will have customers confirmed their work file, the lead time of your order will be counted by the time of work file confirmed
ADD TO BASKET
The price is rough quote. If you need the accurate price with components cost, please register and upload the files.
