High voltage gain boost converter based on voltage lifts techniques

  • Jul 15.2018, 08:46:30
  • see4225
  • see0
  • Approval (1134)

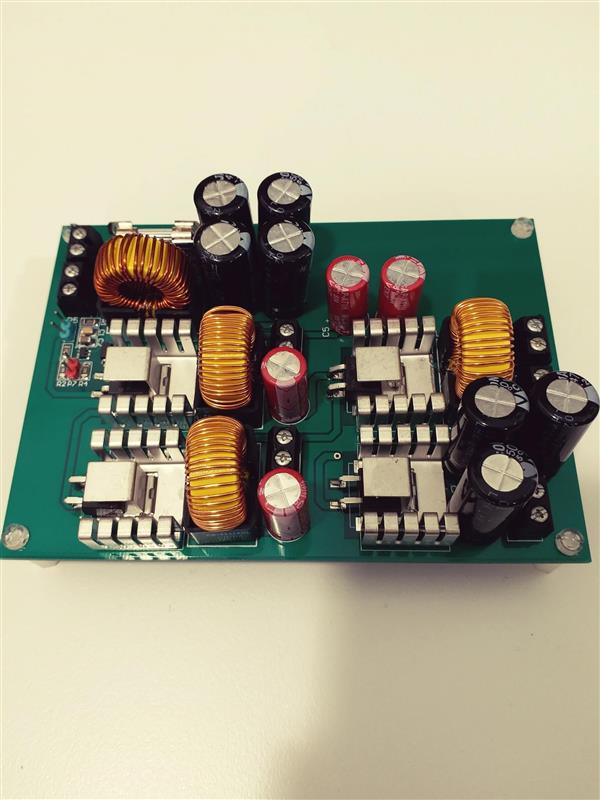

Here are the photography of prototype. The conversion ratio of boost voltage with voltage lifts capability can boost up to 4 times higher than the traditional boost converter. It is simply added two more L and C resonant circuit plus additional diodes to control the current flows for achieving this circuit operation.
