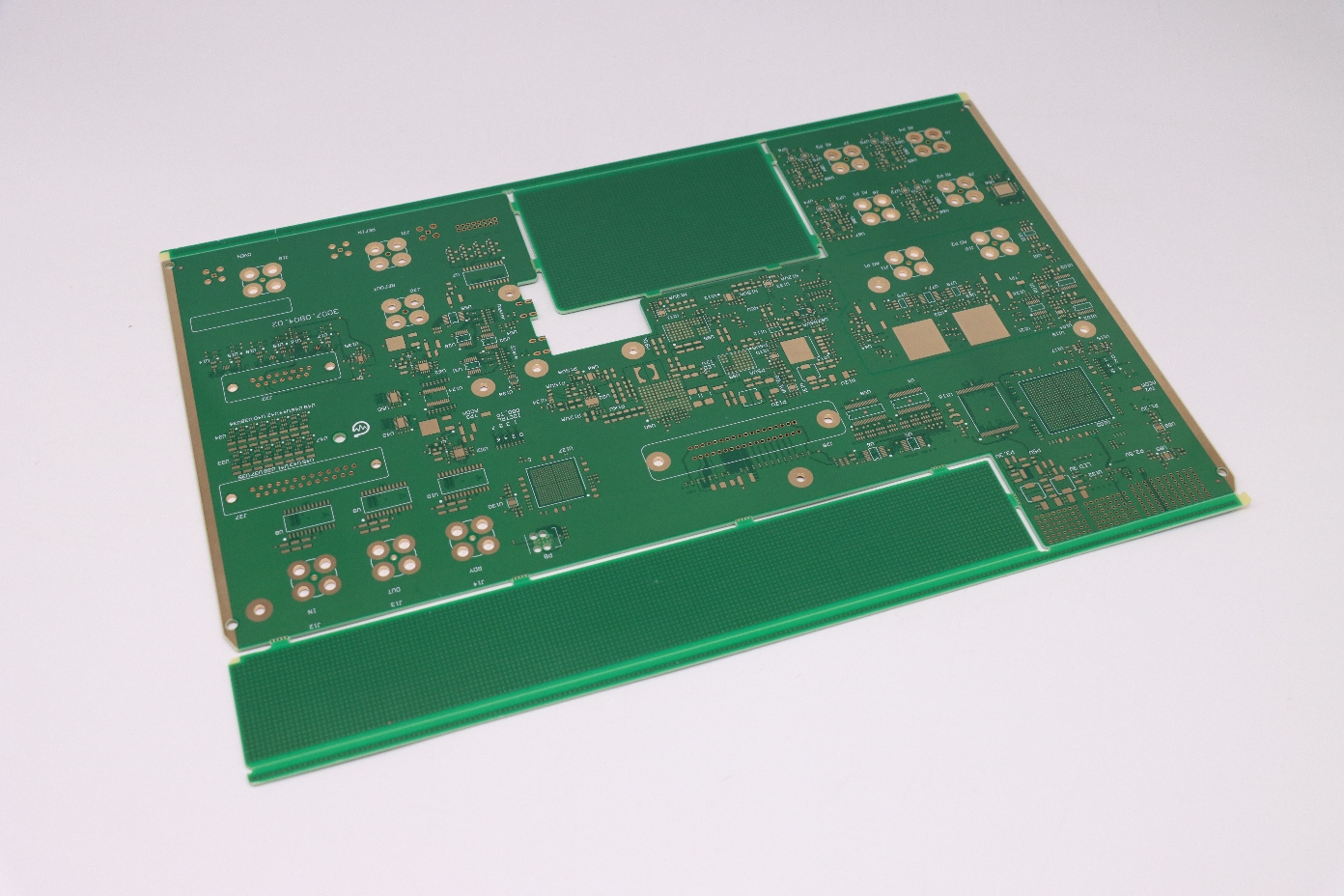

When you look at a circuit board, besides the dense traces and pads, you'll also notice many small holes of various sizes. These seemingly insignificant holes are what transform a PCB from a two-dimensional "plane" into a three-dimensional "structure." We call them vias, and they are the mysterious "3D tunnels" inside the board that allow electrical currents to travel freely between different circuit layers.
The Core Function of Vias: Connecting Different Worlds
Without vias, multi-layer boards couldn't support complex routing, as traces would be confined to their respective planes. It is through vias that engineers can design circuits more compactly and efficiently, enabling complex cross-connections and fitting more functionality into a limited space.
Types of Vias: More Than Just a Simple Hole
While all vias serve to connect different layers, they are categorized into several types based on their location and connection method within the board. The three most common types are:
Through-hole Via: This is the most basic and common type of via. It passes all the way through the entire circuit board, from the top layer to the bottom. Most of the vias you see on a typical computer motherboard are of this type. They are easy to manufacture and low-cost, but a drawback is that they consume valuable routing space on all layers, especially in high-density boards.
Blind Via: As the name suggests, this is a "blind" hole. It starts on one side of the board (top or bottom) but only extends to one of the inner layers, without going all the way through. Blind vias are primarily used to connect outer layers to inner layers and are particularly suitable for high-density interconnect (HDI) boards where routing space is extremely limited. They don't waste unnecessary space, but their manufacturing process is more complex.
Buried Via: This type of via is completely "buried" inside the circuit board, connecting only two or more inner layers without touching the outer layers. Buried vias are the ultimate solution for achieving ultra-high-density routing because they don't consume any outer-layer space, leaving it free for more traces or components. However, their manufacturing is the most complex of all vias, as they must be created before the board is laminated, making them the most expensive. They are typically used in devices like smartphones and high-end servers that have extreme size and performance requirements.
Industry Trends and Developments
With the rise of the Internet of Things (IoT), Artificial Intelligence (AI), and 5G technology, the demand for higher integration and density in PCBs is increasing. This means via technology is also constantly evolving. The size of traditional through-holes can no longer meet the needs of high-density boards, so miniaturization (Microvia) technology, including the widespread use of blind and buried vias, has become a major industry trend.
Furthermore, to address challenges posed by high-frequency, high-speed signal transmission, such as signal integrity issues, via designs have become more sophisticated. Engineers must consider factors like via impedance, parasitic capacitance, and inductance to ensure signals do not suffer distortion or loss as they pass through the "tunnels." As a result, in advanced PCB design, a via is no longer just a simple connection but a critical component that requires precise calculation and optimization.
At PCBgogo, we know that vias are the "veins" and "nerves" of every circuit board; they define the limits of a board's performance. From basic through-hole boards to complex HDI boards, we have extensive manufacturing experience. We can precisely control the size and placement of every via, ensuring that each "3D tunnel" is clear and unobstructed, guaranteeing that your design will perform flawlessly. We don't just view vias as a simple drilling step; we see them as crucial bridges connecting your innovative ideas to the real world. We are dedicated to providing the most advanced via manufacturing technology to build reliable, efficient, and high-performance circuit boards for you.
