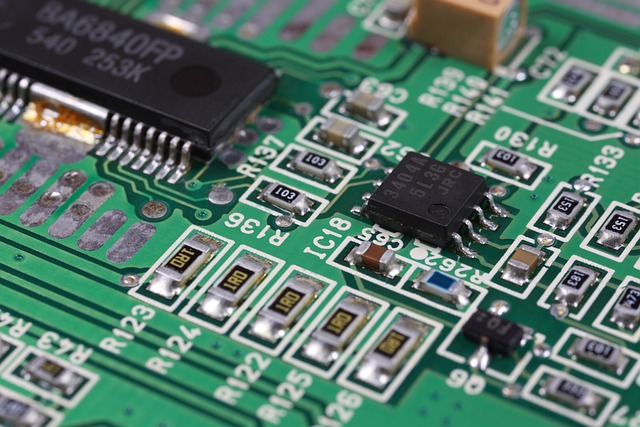

When we look at a finished printed circuit board (PCB), the most visible feature is often its green coating. This is called the solder mask, and it is far more than just a layer of paint. Solder mask is one of the most critical protective layers in PCB manufacturing. It prevents soldering errors, enhances durability, and supports the reliability of modern electronics. Let’s explore how solder mask works, the types available, and why it matters in today’s industry.

 1.What Does the Solder Mask Do?

• Prevents Short Circuits: During soldering, molten solder tends to flow. Without a solder mask, it could easily bridge between pads and create shorts. The solder mask acts like a barrier, keeping solder where it belongs.




• Protects Copper: Copper traces on a PCB are prone to oxidation. The solder mask shields them from air and moisture, extending the board’s lifespan.




• Improves Assembly: With defined openings only at pads, the solder mask helps ensure precise component placement and reduces rework.




A simple analogy is using a stencil when painting. The stencil blocks paint from going everywhere, just like solder mask prevents solder from spreading beyond the pads.

2. Common Types of Solder Mask

• Liquid Photoimageable (LPI): The most widely used type today, applied as a liquid and hardened by UV light. It allows fine patterns suitable for high-density PCBs.




• Dry Film: Less common now, but still used in certain applications requiring thicker protection.




• Epoxy Liquid: An older, screen-printed method, cost-effective but not ideal for modern precision needs.




Most PCBs today use LPI solder mask because it balances cost, resolution, and durability.

3. Applications Across Industries

• Consumer Electronics: Smartphones, laptops, and wearables all rely on solder masks to support dense layouts.




• Automotive and Aerospace: High reliability is essential here; solder masks protect against vibration, heat, and environmental stress.




• Medical Devices: Where accuracy and stability are non-negotiable, solder masks add another layer of safety.

4. Current Trends and Developments

• High-Density Interconnect (HDI) Boards: With shrinking line widths and spacing, advanced solder masks are required to support micro-scale accuracy.




• Color Variations: While green dominates, colors like black, white, red, and even transparent are increasingly used for aesthetics or functional reasons (e.g., better light reflection in LED products).




• Sustainability: New eco-friendly solder mask materials are being developed to reduce environmental impact.




• Smart Manufacturing: Automated inspection ensures that solder mask openings are accurate, minimizing defects in mass production.

5. Why It Matters Now

With the rise of 5G, IoT, and AI-driven hardware, PCB designs are more compact and complex than ever. The solder mask has become more than a protective layer—it is now a precision tool that ensures reliability in cutting-edge electronics.

Conclusion

Solder mask may look simple, but it plays a crucial role in protecting circuits, preventing shorts, and ensuring long-term reliability. Without it, PCBs would face frequent failures and reduced performance.

At PCBgogo, we know the value of solder mask in every project. By using high-quality materials, precise imaging, and strict quality control, we make sure our boards not only meet but exceed industry standards. From prototypes to volume production, we believe that paying attention to details like solder mask is what helps our customers succeed in today’s fast-changing electronics world.
