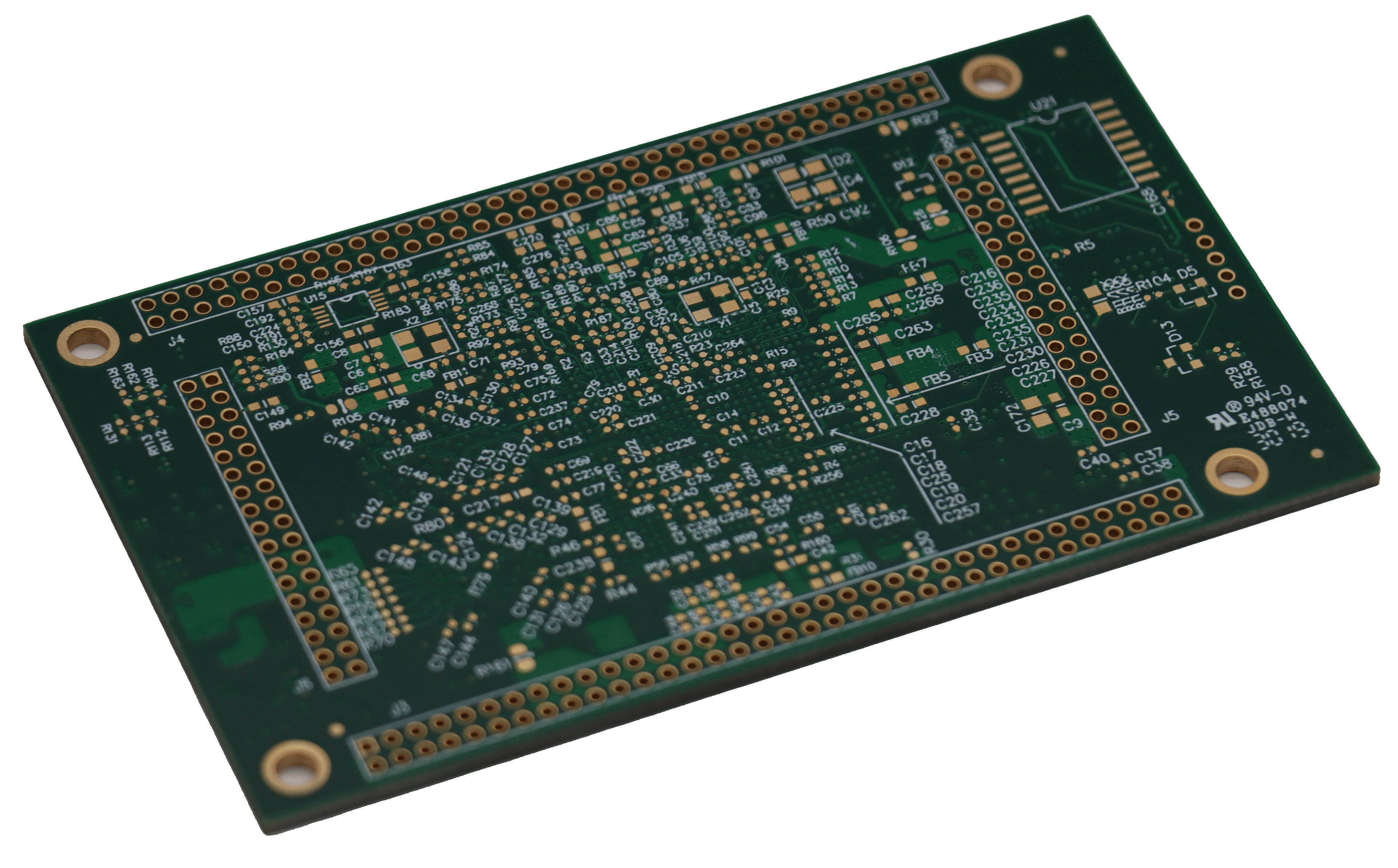

In printed circuit board (PCB) production, multiple boards are often fabricated on a single large panel for efficiency. At the final stage, these boards must be separated into individual units, a process known as depaneling. Choosing the right depaneling method is crucial, as it impacts product quality, efficiency, and cost.
Why Depaneling Matters
Depaneling ensures each PCB reaches its final usable form without damage. A poor technique can cause cracked solder joints, broken traces, or stress on delicate components. As devices get smaller and more complex, the demand for precise, low-stress depaneling has become more important than ever.
Common PCB Depaneling Methods
V-Cut (Scoring)
In this method, a shallow V-shaped groove is cut along the separation lines. The boards are later snapped apart along these grooves.
Advantages: Cost-effective, fast, and widely used for standard boards.
Limitations: Can induce mechanical stress, making it less suitable for boards with fragile components.
Routing (Milling)
A router bit is used to cut along the separation path, leaving small tabs that hold the boards together until final breakaway.
Advantages: Cleaner edges, less stress, good for complex shapes.
Limitations: Slower than V-cut and produces dust that must be managed.
Laser Depaneling
High-precision lasers cut along predefined paths without physical force.
Advantages: Extremely accurate, no mechanical stress, suitable for fine-pitch and high-density PCBs.
Limitations: Higher cost, requires specialized equipment.
Punching (Die Cutting)
Boards are separated using a custom die tool that stamps them out of the panel.
Advantages: Very fast for mass production.
Limitations: Expensive setup, not flexible for small runs or design changes.
Industry Trends
With the rise of miniaturization in consumer electronics, medical devices, and automotive applications, demand for stress-free depaneling methods is growing. Laser depaneling, although costly, is gaining popularity for high-value, fine-line PCBs. At the same time, routing remains a versatile option for medium-complexity designs, balancing speed and precision.
Conclusion
Depaneling may seem like the final, simple step in PCB manufacturing, but it plays a critical role in ensuring product reliability and yield. From traditional V-cut scoring to advanced laser technology, each method serves different needs.
At PCBgogo, we carefully match depaneling techniques to customer requirements, balancing cost, precision, and efficiency. By doing so, we help our clients achieve both performance and reliability in their final products.
