Sheet Metal Prototype: Design, Fabrication, and Cost Guide
A sheet metal prototype is a low quantity fabricated part used to validate fit, function, appearance, and assembly before production. Laser cutting and press brake forming can produce production representative brackets, enclosures, panels, and chassis without dedicated hard tooling.
What Makes a Sheet Metal Prototype Useful?
A sheet metal prototype reveals issues that CAD alone cannot show, including bend interference, tool access, fastener clearance, cosmetic quality, and assembly sequence. Prototypes are especially valuable for validating form, fit, function, service access, and manufacturability before scale up.
Laser cut blanks: Quickly establish profile, holes, slots, and cutouts without stamping tooling.

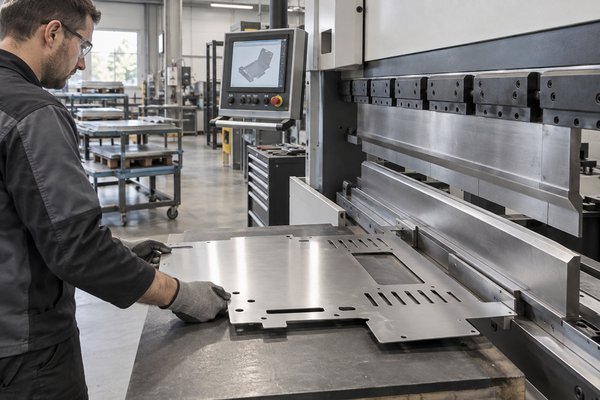

Press brake bends: Turn flat blanks into brackets, cabinets, and formed structural components.
Welded assemblies: Join formed parts where a single folded blank cannot create the required shape.
Hardware insertion: PEM style nuts, studs, and standoffs validate access and fastening strategy early.
What Design Rules Prevent Prototype Rework?
Sheet metal design must allow the material to stretch at bends. Select a consistent material and thickness, use an inside bend radius that matches the forming process, and keep holes clear of bend lines so they do not distort. A flat pattern also needs the correct bend deduction or K factor, which should be confirmed with the chosen fabricator rather than assumed from a generic chart.
Many prototype assemblies include machined brackets, spacers, shafts, or precision interfaces alongside formed panels. PCBgogo's CNC machining services can support those companion parts from the same drawing review cycle, particularly when an assembly needs close fit between a machined feature and a formed part.
What Drives Prototype Cost?
Material, thickness, blank size, cut length, number of bends, welding, inserted hardware, finish, and quantity all influence price. Sheet metal is often an economical way to prototype strong thin wall structures because the same cutting and forming methods can make a functional part at quantity one.
Where Is This CNC Approach Used?
Applications for sheet metal prototype differ by load, environment, and production quantity.
Equipment enclosures: Equipment enclosures use aluminum, mild steel, stainless steel, copper, and coated sheet where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
Mounting brackets: Mounting brackets use aluminum, mild steel, stainless steel, copper, and coated sheet where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
Control panels: Control panels use aluminum, mild steel, stainless steel, copper, and coated sheet where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
Machine guards: Machine guards use aluminum, mild steel, stainless steel, copper, and coated sheet where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
Battery trays: Battery trays use aluminum, mild steel, stainless steel, copper, and coated sheet where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
What Should Engineers Compare Before Choosing?
The table compares practical options associated with sheet metal prototype.
| Option | Key characteristic | Machining or process | Typical use |
|---|---|---|---|
| Aluminum | Light and corrosion resistant | Moderate springback | Enclosures |
| Mild steel | Stiff and economical | Easy to weld | Brackets |
| Stainless steel | Corrosion resistant | Higher forming force | Food equipment |
| Copper | Conductive | Soft and mark sensitive | Electrical hardware |
What Drives a Manufacturable Design?
A manufacturable sheet metal prototype specification connects function to process capability.
Functional requirement: Define what sheet metal prototype must achieve before selecting a grade, tool, or process. Load, motion, environment, and mating components should translate into measurable drawing requirements.
Material condition: Record the incoming and final condition of aluminum, mild steel, stainless steel, copper, and coated sheet. Hardness and heat treatment can change cutting behavior, distortion risk, and the operation that should create the final dimension.
Datum strategy: Build the setup around bend radii, flanges, holes near bends, joints, and machined interfaces. Functional datums reduce accumulated error and make the inspection report easier to compare with assembly needs.
Tool access: Review reach, corner radius, chip evacuation, and holder clearance before programming laser cutting, press brake forming, welding, hardware insertion, and CNC machining of companion parts. Better access usually reduces setup count and avoids unnecessarily long tools.
Tolerance allocation: Apply close limits only to features that control fit, sealing, location, or motion. General surfaces can use a broader standard tolerance without weakening performance.
Workholding: Clamp against stable reference surfaces and support flexible areas near the cut. The setup must resist cutting force without temporarily bending the workpiece.
Surface finish: Specify roughness where friction, sealing, fatigue, or appearance requires it. A low Ra value on every surface increases cycle time and inspection with little functional return.
What Workflow Reduces Rework?
A reliable sheet metal prototype workflow closes decisions in a deliberate order.
Confirm the material specification and delivery condition for aluminum, mild steel, stainless steel, copper, and coated sheet.
Mark bend radii, flanges, holes near bends, joints, and machined interfaces as critical, reference, or general features on the drawing.
Choose a setup sequence for laser cutting, press brake forming, welding, hardware insertion, and CNC machining of companion parts that preserves the same functional datums.
Review the main process risks, especially springback, hole distortion, weld movement, and tolerance stackup, before approving the first article.
Define inspection records for flat pattern revision, bend angle, hole position, overall form, and assembly fit and agree on sampling before production.

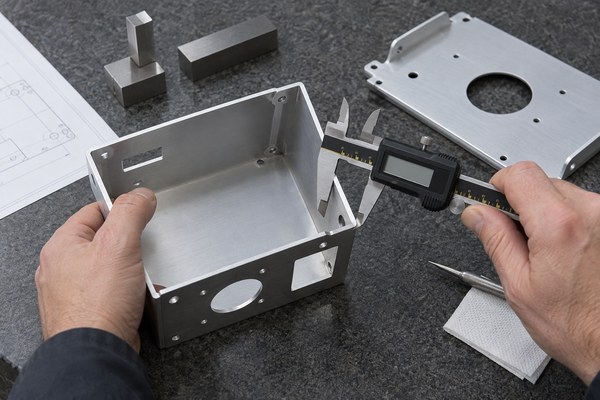

Which Quality Controls Belong in the Plan?
Quality control for sheet metal prototype is a stack of material, process, and dimensional checks.
Incoming control: Verify material identity and condition before machining. This prevents a correct program from producing parts in the wrong alloy or hardness.
First article inspection: Measure the complete first setup before releasing the batch. The result confirms both the program and the datum transfer strategy.
In process checks: Monitor tool wear and the dimensions most sensitive to springback, hole distortion, weld movement, and tolerance stackup. Scheduled checks are more reliable than waiting for the final inspection to reveal drift.
Final verification: Report flat pattern revision, bend angle, hole position, overall form, and assembly fit using instruments with suitable resolution and calibration status. A quality certificate does not replace part specific evidence.
Which Challenges and Trends Matter Now?
The central challenge for sheet metal prototype is improving precision and speed without specifying cost that the function does not need.
Higher mix production: More variants make flexible fixtures and documented setup offsets increasingly important.
Tighter functional fits: Designers are specifying closer fits while also expecting shorter lead times, which increases the value of early DFM review.
Digital inspection records: Structured measurement data helps teams connect drawing revisions, process changes, and nonconformance decisions.
Cost pressure: The strongest savings usually come from sensible tolerances, accessible geometry, and fewer setups rather than a lower hourly machine rate.
FAQs
What is the best material for a sheet metal prototype?
Aluminum suits light, corrosion resistant enclosures. Mild steel provides stiffness at low material cost, while stainless steel is useful where corrosion resistance and appearance matter.
How close can a hole be to a bend?
The safe distance depends on material, thickness, bend radius, and forming method. Confirm the rule with the fabricator before fixing the drawing.
Is sheet metal better than CNC machining for an enclosure?
Sheet metal is usually more economical for thin wall enclosures and brackets. CNC machining is better for thick sections, complex solid geometry, or very tight local tolerances.
A useful sheet metal prototype is not simply a fast part. It is a manufacturing test that makes the first production run more predictable.
