Heat Resistant Metals: Materials for High Temperature Parts
Heat resistant metals are selected for their ability to retain useful strength and resist oxidation, creep, or corrosion at elevated temperature. Tungsten has the highest melting point among pure metals, but stainless steel, nickel superalloys, and refractory metals are chosen by actual service temperature, load, atmosphere, and cost.
What Properties Make a Metal Heat Resistant?
Heat resistance combines more than melting point. A practical high temperature material must resist oxidation, retain strength under load, limit creep over time, and survive heating and cooling cycles without cracking.
Tungsten: Its melting point is about 3,422 C, but oxidation in air and high density limit many practical applications.
Molybdenum: Offers high temperature strength and is commonly used as an alloying element or in controlled atmospheres.
Nickel superalloys: Grades in the Inconel and Hastelloy families retain strength and oxidation resistance in demanding turbine, furnace, and chemical service.
Heat resistant stainless steel: Grades such as 310 and 321 are often practical where oxidation resistance and fabrication are more important than extreme temperature capability.
Titanium alloys: Offer excellent strength to weight ratio in moderate high temperature applications, but their temperature limit is lower than nickel superalloys.
Material choice requires more than a melting point comparison. Load, corrosion, and oxidation can cause failure well before melting becomes relevant.
How Should Engineers Select a High Temperature Alloy?
The best heat resistant metal follows the real thermal and chemical conditions.
Continuous operating temperature: Design for the normal steady state temperature, not only a brief peak.
Atmosphere: Air, vacuum, reducing gas, combustion gas, and molten salts create different oxidation and corrosion risks.
Mechanical load: A furnace fixture under load needs creep resistance, while a heat shield may prioritize low thermal conductivity.
Thermal cycling: Repeated heating and cooling can cause fatigue through differential expansion.
Manufacturing route: Nickel alloys, titanium, and refractory metals may require slower machining and more specialized tooling.
When both high temperature and chemical exposure are present, evaluate oxidation resistance, corrosion resistance, creep strength, and thermal stability together. A material that performs well in dry air may behave differently in combustion gases, vacuum, or chemically aggressive environments.
What Does CNC Machining Change?
Machining heat-resistant metals requires balancing material removal rate, cutting temperature, dimensional accuracy, and tool life. Nickel-based superalloys can work-harden and retain heat near the cutting edge. Titanium alloys conduct heat poorly, while some refractory metals can be brittle or difficult to obtain in machinable forms.
Successful machining generally requires rigid workholding, stable tool engagement, sharp cutting edges, suitable tool materials, and carefully controlled cutting parameters. Cooling and lubrication methods must match the alloy and machining operation.
A CNC design-for-manufacturing review is especially valuable for high-temperature parts. Wall thickness, internal corner radii, cavity depth, tool access, tolerances, surface finish, and finishing requirements can determine whether the selected alloy is practical and economical to machine.
Which Standards and Risks Matter?
High temperature material control should include the product specification, heat treatment record when applicable, and inspection of dimensions that may shift during service.
ASTM material specifications: Define alloy chemistry and mechanical properties for the supplied product form.
ISO 6892: Covers tensile testing of metallic materials at room temperature, while high temperature tests need the relevant test method.
ISO 4287: Defines surface texture parameters for machined surfaces.
Material traceability: Links the finished component to its heat or batch documentation.
The central challenge is that a material may resist heat yet still fail from oxidation, creep, thermal fatigue, or corrosion. Select the alloy against the full failure mode, then prototype the real geometry.
Where Is This CNC Approach Used?
Applications for heat resistant metals differ by load, environment, and production quantity.

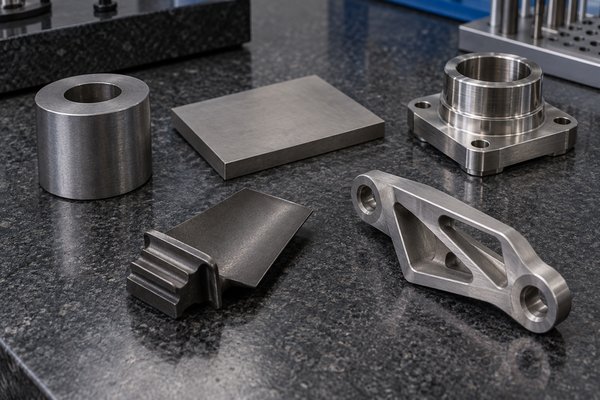

Turbine hardware: Turbine hardware use heat resistant stainless steels, nickel superalloys, titanium alloys, and refractory metals where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
Furnace fixtures: Furnace fixtures use heat resistant stainless steels, nickel superalloys, titanium alloys, and refractory metals where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
Exhaust components: Exhaust components use heat resistant stainless steels, nickel superalloys, titanium alloys, and refractory metals where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
Chemical process valves: Chemical process valves use heat resistant stainless steels, nickel superalloys, titanium alloys, and refractory metals where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
High temperature fasteners: High temperature fasteners use heat resistant stainless steels, nickel superalloys, titanium alloys, and refractory metals where geometry, service load, and production volume justify CNC processing. The drawing should isolate functional dimensions so inspection effort follows the part's real job.
What Should Engineers Compare Before Choosing?
The table compares practical options associated with heat resistant metals.
| Option | Key characteristic | Machining or process | Typical use |
|---|---|---|---|
| 310 stainless steel | Oxidizing heat service | Good | Moderate |
| Inconel family | Hot strength and oxidation | Difficult | High |
| Titanium alloys | Strength to weight | Difficult | High |
| Tungsten | Extreme melting point | Specialized | Very high |
What Drives a Manufacturable Design?
A manufacturable heat resistant metals specification connects function to process capability.
Functional requirement: Define what heat resistant metals must achieve before selecting a grade, tool, or process. Load, motion, environment, and mating components should translate into measurable drawing requirements.
Material condition: Record the incoming and final condition of heat resistant stainless steels, nickel superalloys, titanium alloys, and refractory metals. Hardness and heat treatment can change cutting behavior, distortion risk, and the operation that should create the final dimension.
Datum strategy: Build the setup around hot load surfaces, sealing faces, thin walls, and thermally cycled joints. Functional datums reduce accumulated error and make the inspection report easier to compare with assembly needs.
Tool access: Review reach, corner radius, chip evacuation, and holder clearance before programming controlled CNC machining with rigid tooling and suitable cooling. Better access usually reduces setup count and avoids unnecessarily long tools.
Tolerance allocation: Apply close limits only to features that control fit, sealing, location, or motion. General surfaces can use a broader standard tolerance without weakening performance.
Workholding: Clamp against stable reference surfaces and support flexible areas near the cut. The setup must resist cutting force without temporarily bending the workpiece.
Surface finish: Specify roughness where friction, sealing, fatigue, or appearance requires it. A low Ra value on every surface increases cycle time and inspection with little functional return.
What Workflow Reduces Rework?
A reliable heat resistant metals workflow closes decisions in a deliberate order.
Confirm the material specification and delivery condition for heat resistant stainless steels, nickel superalloys, titanium alloys, and refractory metals.
Mark hot load surfaces, sealing faces, thin walls, and thermally cycled joints as critical, reference, or general features on the drawing.
Choose a setup sequence for controlled CNC machining with rigid tooling and suitable cooling that preserves the same functional datums.
Review the main process risks, especially work hardening, oxidation, creep, and concentrated cutting heat, before approving the first article.
Define inspection records for material identity, heat treatment condition, dimensions, and surface integrity and agree on sampling before production.
FAQs
What is the most heat resistant metal?
Tungsten has the highest melting point of pure metals. It is not automatically the best engineering choice because oxidation, density, cost, and manufacturability also matter.
Is stainless steel heat resistant?
Some stainless steel grades are heat resistant. Grades formulated for elevated temperature service provide better oxidation resistance and hot strength than common general purpose grades.
Is Inconel difficult to machine?
Yes. Nickel superalloys commonly require rigid equipment, conservative cutting conditions, and careful tool management because they retain heat and can work harden.
Choose a heat resistant metal from its operating environment, not from a single headline property. A material that survives the actual load and atmosphere is more valuable than one with an impressive but irrelevant melting point.
