Analog Signal to Digital Conversion Complete PCB Guide
Analog signal to digital conversion samples a continuous voltage at defined times, maps each sample to one of a finite number of levels, and outputs a digital code. Measurement quality depends on sampling rate, resolution, input range, reference accuracy, noise, front end settling, filtering, clock timing, grounding, and PCB layout around the ADC.
Why ADC Performance Depends on the Whole Signal Chain
Analog-to-digital conversion depends on the sensor, conditioning circuit, reference, ADC, clock, power, layout, and firmware working as one signal chain. A converter with more bits cannot restore information lost to noise, clipping, insufficient bandwidth, or a source that does not settle at the input pin.
An ADC converts real-world quantities such as temperature, pressure, acceleration, light, sound, and current into numbers a processor can store or analyze. It samples an input voltage, compares it with a known reference, and produces a corresponding digital value.
How Analog Signal to Digital Conversion Works
Analog signal to digital conversion works through sampling, quantization, and encoding. Sampling selects the signal value at a point in time, quantization assigns the nearest available level, and encoding expresses that level as a binary word.
Sampling turns continuous time into discrete measurement instants. The Nyquist criterion requires a sampling rate greater than twice the highest signal frequency that must be preserved. A 20 kHz audio band therefore needs more than 40 kSPS in theory, while practical audio systems commonly use 44.1 or 48 kSPS to leave filter margin.
ADC Architectures and Their Best Uses
ADC architectures trade conversion speed, resolution, latency, power, and input behavior. The best choice follows the signal bandwidth and error budget rather than one universal ranking.
This table compares common architectures at a system design level.
| Architecture | Typical strength | Typical use | Design concern |
|---|---|---|---|
| SAR | Balanced resolution and speed with low latency | Sensors, control, and multiplexed data acquisition | Input settling and reference drive |
| Delta sigma | High resolution and strong digital filtering | Precision temperature, weigh scales, and low bandwidth sensors | Latency and filter settling |
| Pipeline | High sample rate with moderate to high resolution | Communications, imaging, and instrumentation | Clock quality, latency, and power |
| Flash | Very fast conversion | High speed acquisition and timing | Comparator count, power, and input load |
| Integrated MCU ADC | Low cost and simple control | Housekeeping, battery, and basic sensors | Reference, noise, and limited specifications |
ADCs are commonly grouped into general-purpose, high-speed, and precision categories. Common architectures include successive-approximation-register (SAR), pipeline, flash, and delta-sigma converters, each with different tradeoffs in speed, resolution, power consumption, latency, and noise performance.
Always confirm the current datasheet for the exact device, since performance ranges and specifications vary across product families.
ADC Parameters That Determine Measurement Quality
ADC measurement quality is determined by resolution, sample rate, reference, input range, noise, linearity, and settling. Nominal bit count describes the number of codes, not the number of noise free bits available in the final product.
Resolution: An N bit converter has 2 to the power of N ideal codes. For a 3.3 V range, a 12 bit LSB is about 806 microvolts before reference and converter errors.
Sampling rate: Samples per second set the available signal bandwidth and processing load. The anti alias filter must remove unwanted energy that could fold into the measurement band.
Sampling rate: Samples per second determine available signal bandwidth and processing load. The anti-alias filter must attenuate unwanted energy that could fold into the measurement band.
SNR and ENOB: Signal to noise ratio includes noise, while effective number of bits expresses dynamic performance in bit terms. Both can be lower than nominal resolution.
Build an error budget in volts or input units. This makes reference drift, amplifier offset, resistor tolerance, ADC error, and sensor error directly comparable.
Applications of Analog to Digital Conversion
Analog to digital conversion applications differ mainly in bandwidth, dynamic range, latency, and environmental noise. A slow thermocouple channel and an imaging channel both use ADCs but need very different front ends and layouts.
Thermocouple input: Microvolt level signals need low offset amplification, cold junction compensation, filtering, and careful grounding. Sample rate can be low, while drift matters greatly.
Motor current control: Fast current feedback helps a controller regulate torque and detect faults. Conversion latency and synchronized sampling matter beside switching noise.
Digital audio: Audio converters commonly use 44.1 kSPS or 48 kSPS for the audible band, with anti alias filtering and low jitter clocks.
Industrial transmitter: A 4 to 20 mA receiver converts loop current into voltage, filters interference, and digitizes the process value for control or communication.

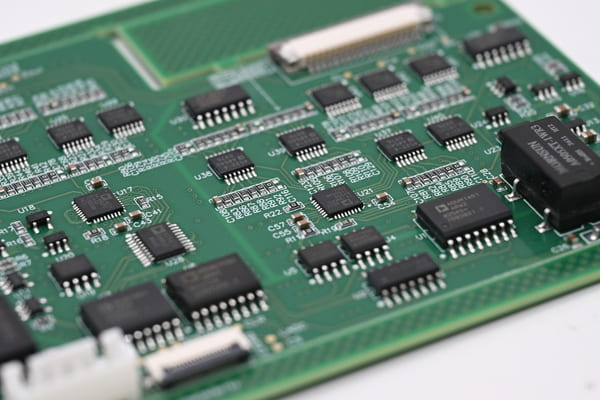

PCB Design Factors for Accurate ADC Circuits
Accurate ADC PCB design is determined by reference integrity, input settling, return current, clock noise, supply decoupling, and physical separation from switching nodes. The converter only measures the voltage that reaches its pins.
Reference placement: Place the reference and its decoupling close to the ADC pins. Follow the required capacitor value, ESR, and buffer guidance from the datasheet.
Input driver settling: SAR ADC inputs often contain a switched sampling capacitor. The amplifier and RC network must settle to the target error within acquisition time.
Anti alias filter: Place a low pass filter before the ADC to limit out of band energy. Check that filter resistance does not prevent input settling.
Ground reference: Use a continuous low impedance plane for many mixed signal designs and partition placement so digital returns do not cross the analog input region.
SAR converters can be sensitive to sudden changes on the supply, reference, ground, and digital inputs during conversion. This is why a clean schematic can still produce noisy data if a clock trace or switching node is routed beside the ADC.
When the stackup and mixed signal requirements are defined, PCBgogo can fabricate multilayer boards and provide electrical testing from the released data. State controlled impedance, copper weight, material, and test requirements clearly so the manufacturing output preserves the intended reference and routing structure.
PCBgogo - Reliable, High-Quality PCB Manufacturing
Save time and money with an all-in-one solution for PCB fabrication, assembly, and parts. Reduce vendor coordination, avoid split shipments, and get consistent, reliable quality.
Get Free Quote >
Standards and Verification for ADC Designs
ADC verification standards cover converter characterization, PCB design, product safety, and application specific performance. No single certificate proves that a complete measurement chain is accurate.
IEEE 1241: Defines terminology and test methods for analog to digital converters.
IPC 2221: Provides generic PCB design guidance used alongside the converter and product requirements.
Calibration traceability: Measurement products may need calibration records linked to reference standards and the specified operating range.
Verify the chain with known input levels across temperature and operating modes. Record raw ADC codes before calibration, then confirm offset, gain, noise, linearity, and dynamic behavior against the error budget.
Common ADC Design Mistakes
Common ADC design mistakes select impressive nominal specifications while leaving the reference, driver, filter, layout, or firmware unable to support them. The result often looks stable but measures the wrong value.
Choosing bits instead of accuracy: A 16 bit label does not guarantee 16 noise free bits. Compare SNR, ENOB, INL, offset, gain, and reference errors.
Ignoring source impedance: The sampling capacitor may not charge fully during acquisition, creating a code dependent settling error.
Omitting anti alias filtering: Noise above half the sample rate can fold into the band and cannot be removed afterward.
Sharing noisy ground paths: Digital or load current creates voltage on the analog reference path and appears as measurement error.
A useful debug capture includes the input voltage at the ADC pin, reference voltage, raw codes, sample timing, and operating state. That evidence separates analog error from digital interpretation.
Frequently Asked Questions About ADCs
These questions clarify the relationship among sampling, resolution, accuracy, filtering, and PCB layout.
Is a higher resolution ADC always more accurate?
No. Resolution defines code count, while accuracy also depends on noise, linearity, reference error, offset, gain, and the analog front end. Effective bits can be lower than the nominal value.
What sampling rate should an ADC use?
The rate must exceed twice the highest frequency that must be preserved and allow a practical anti alias filter. Control latency, processing load, and converter settling may require a higher rate.
Why does an ADC need a reference voltage?
The reference defines the scale used to map input voltage into digital codes. Reference noise, drift, and loading therefore appear directly in the measurement result.
Should analog and digital ground be separated around an ADC?
Do not split ground automatically. Many designs use one continuous plane with careful placement, while some devices require a specific connection scheme. Follow the datasheet and analyze return currents.
Conclusion
Analog signal to digital conversion is accurate only when the complete signal chain preserves the quantity being measured. Define bandwidth and error first, select the architecture and reference, then verify input settling, filtering, grounding, clocking, and raw codes on the finished PCB.
