PCB Prototype to Production Small Batch Manufacturing Guide

Moving a PCB prototype to production requires more than increasing order quantity. The design must be released under revision control, checked for manufacturability, matched to available components, panelized for assembly, and verified with a pilot build. A successful transition produces repeatable boards, documented test results, and a stable baseline for future batches.

Why a Working Prototype Is Not Yet Production Ready

A working prototype proves circuit intent, while a production ready design proves that the same result can be built repeatedly with controlled files, materials, assembly steps, and tests. Prototype success can hide hand rework, substituted parts, bench power conditions, or firmware settings that never entered the official release.

The transition usually passes through prototype, pilot, small batch, and volume stages. Each stage answers a different question. The prototype asks whether the design works.

The pilot asks whether the released manufacturing package works. The small batch tests consistency and field use before larger material and tooling commitments are made.

KiCad documentation separates schematic checks, PCB design rule checks, and fabrication output generation because they verify different parts of the release. A clean design rule check is useful, but it does not confirm component supply, stencil behavior, programming, or product level test coverage.

How the Four Build Stages Differ

The correct build stage is determined by what the team still needs to learn and how costly a change would be. Ordering volume before those questions are closed converts engineering uncertainty into inventory.

This comparison shows the primary purpose and release expectation at each stage.

A pilot should use the intended laminate, stackup, components, stencil approach, assembly line, and test flow whenever practical. If the pilot uses easier substitutes, its data may not predict the behavior of the production lot.

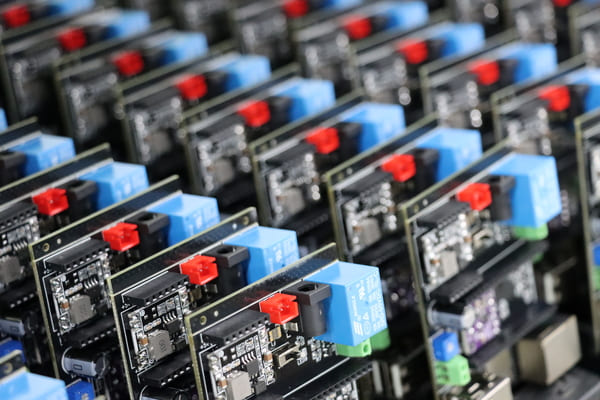

Applications That Benefit from Small Batch Production

Small batch PCB production fits products that need real manufacturing evidence before demand or certification justifies volume. The quantity is less important than the learning goal and the cost of discovering a fault later.

• Certification units: Safety, radio, electromagnetic compatibility, or environmental tests should use hardware that matches the intended production construction. A board change after testing can trigger an engineering review or retest.

• Beta hardware: Connected devices placed with selected users reveal power, wireless, enclosure, and firmware issues that a lab prototype may miss.

• Industrial control modules: A small batch can run in the target cabinet, temperature, noise, and wiring environment before a full plant rollout.

• Medical engineering samples: Preclinical and verification units need strict configuration records even when they are not commercial production. Documentation should show exactly which revision was tested.

The PCB Prototype to Production Checklist

A PCB prototype to production checklist closes the data, manufacturability, supply, assembly, and test gaps that prototypes often leave open. Every item should have an owner and evidence before the pilot lot is released.

• Synchronize design outputs: Generate the Gerber or ODB data, NC drill, netlist, fabrication drawing, BOM, centroid file, assembly drawing, and schematics from one approved revision.

• Complete DFM and DFA review: Check trace and space, annular rings, mask dams, copper to edge distance, drill aspect ratio, footprints, polarity, component spacing, and depanelization access.

• Clean the BOM: Use manufacturer part numbers, reference designators, quantity per board, package, lifecycle status, and explicit alternate rules. Remove prototype only purchasing notes.

• Approve panelization: Set rails, fiducials, tooling holes, breakaway features, board orientation, coupons, and sensitive component clearances.

• Define programming and test: State firmware version, programming interface, required fixtures, input conditions, measured outputs, limits, and data retention.

The IPC electronics checklist maps design, fabrication, assembly, storage, and test activities to separate standards. That structure is useful because a production package fails when one discipline assumes another team supplied the missing requirement.

Cost and Lead Time Changes During Scaling

Cost and lead time change during scaling because setup work is spread across more units while material, tooling, inspection, and inventory commitments increase. Unit price can fall without total project risk falling.

Prototype quotes are often dominated by CAM setup, expedited fabrication, stencil preparation, and line changeover. Small batches make panel utilization, placement time, programming, functional test, and component price breaks more visible. A board that saves a small amount in fabrication can cost more overall if poor panelization slows assembly or lowers yield.

Lead time is usually controlled by the longest committed item. A common connector or processor with uncertain allocation can delay a complete build even when bare boards are finished. Review authorized supply, minimum order quantities, moisture sensitivity, programming needs, and alternates before setting the production date.

Standards and Records for a Production Release

Production release standards define how the board and assembly will be built and accepted, while configuration records show what was actually built. The standard stack depends on product type and customer requirements.

• IPC 2220 series: Supports printed board design principles and sectional requirements.

• IPC 6012 and IPC A 600: Pair rigid board performance requirements with illustrated bare board acceptability.

• J STD 001 and IPC A 610: Pair soldering process requirements with finished electronic assembly acceptance.

• J STD 033: Defines handling controls for moisture sensitive surface mount devices before reflow.

• Product standards: Safety, radio, automotive, medical, or customer standards may add creepage, materials, traceability, validation, and change requirements.

A certificate does not prove that every customer requirement was communicated. The fabrication drawing, assembly notes, approved BOM, test procedure, deviation log, and lot records must point to the same revision.

How to Use a Manufacturing Partner During the Transition

A manufacturing partner supports the prototype to production transition by reviewing the same technical package that will control fabrication, sourcing, assembly, and test. The best time for that review is before the team commits a pilot quantity and long lead components.

PCBgogo lists DFM review, component sourcing, SMD and through hole assembly, and functional testing among its PCBA capabilities. Those services map directly to the release checklist because they allow manufacturability findings, BOM questions, and test needs to be resolved against one build plan.

Send the released Gerber data, BOM, centroid file, assembly drawings, and test instructions together. Ask the engineering team to record open questions and approved exceptions before production begins. That exchange creates a usable baseline for the next order.

PCBgogo - Reliable, High-Quality PCB Manufacturing
       Save time and money with an all-in-one solution for PCB fabrication, assembly, and parts. Reduce vendor coordination, avoid split shipments, and get consistent, reliable quality.      Get Free Quote  >

Common Scaling Mistakes and Better Controls

The main scaling risk is treating an unfinished engineering build as a purchasing problem. Larger quantities amplify every undocumented change, ambiguous note, and marginal process feature.

• Ordering before closing rework: Move every jumper, cut trace, swapped value, and polarity fix into the controlled design before the pilot.

• Approving footprint only substitutes: Check electrical limits, timing, firmware, thermal behavior, lifecycle, and package details before accepting an alternate.

• Skipping the production panel: A single loose prototype does not reveal rail, fiducial, conveyor, stencil, or depanelization problems.

• Testing only power on: A lit LED does not prove communication, calibration, protection, analog accuracy, or load behavior. Define measurable pass limits.

• Mixing revisions: Separate material, boards, firmware, and records by revision. Never rely on memory to identify a reworked unit.

A controlled pilot turns these risks into evidence. Review failures and rework before authorizing the next quantity.

Conclusion

A PCB prototype to production transition succeeds when the pilot proves the released files, materials, assembly process, and test plan together. Close every deviation, record the as built configuration, and scale only after the evidence supports a repeatable result.

Frequently Asked Questions About Moving a PCB into Production

These questions focus on the decisions that determine whether a prototype is ready for a repeatable manufacturing process.

What files should be frozen before small batch production?

Freeze fabrication data, drill files, netlist, drawings, stackup, BOM, centroid data, test procedure, and firmware identifier. Each file should carry a matching revision or release record.

Can the prototype BOM be used for production?

Only after it is cleaned and verified. Production BOM lines need exact manufacturer part numbers, approved alternatives, lifecycle status, package details, quantities, and traceable sourcing rules.

Why is panelization reviewed before assembly?

Panelization determines how boards travel through printing, placement, reflow, inspection, and depanelization. Rails, fiducials, tooling holes, and component edge clearance can affect both yield and cycle time.

When is a PCB ready for mass production?

A PCB is ready when the design and materials are stable, the pilot process meets yield and test targets, supply risks are controlled, and changes follow formal approval. Demand should also justify the larger tooling and inventory commitment.
