Why Avoid PCB Right-Angle Routing? 3 Key Reasons

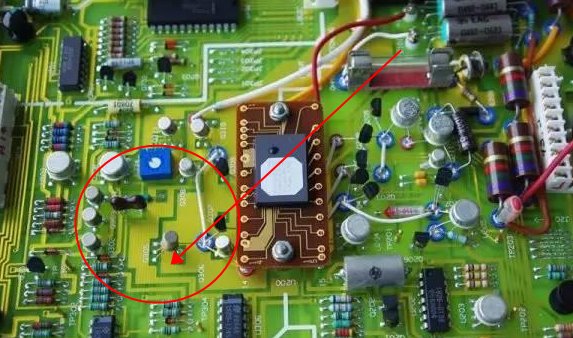

When learning PCB design, one of the first rules you encounter is: avoid right-angle routing. Most experienced electronic engineers consider 45-degree or mitered corners a hallmark of a professional layout. But is it strictly forbidden to use 90-degree bends? Let’s dive into why PCB right-angle routing is generally avoided and when it actually matters.

1. Impact on Signal Integrity and Impedance

The biggest technical argument against 90-degree bends involves signal integrity. Whether you can use a right angle depends largely on your operating frequency.

In low-frequency circuits, the signal wavelength is significantly longer than the trace length. In these cases, the trace acts as a "short wire," and minor reflections are negligible. However, as we move into high-frequency PCB design, the "geometry" of the trace becomes critical.

The Impedance Problem

When a trace turns at a 90-degree angle, the width at the corner increases by approximately 1.414 times (W  × √2). This change in geometry causes a sudden drop in characteristic impedance.

For example, on a standard 6-layer board (A-1080 stackup), a 50Ω transmission line might require a width of 3.97 mil. At a right-angle corner, the effective width jumps to 5.61 mil, dropping the impedance to roughly 42.63Ω. This impedance mismatch triggers signal reflections, which can lead to:

• Signal distortion and overshoot.

• Timing delays (jitter).

• Increased parasitic capacitance and EMI.

In high-speed designs (especially those exceeding 10GHz), these reflections can cause system failure. To maintain a tolerance of ±10%, engineers prefer 45° mitered corners or circular arcs to keep the line width constant.

2. Manufacturing Risks: The "Acid Trap"

From a fabrication perspective, sharp angles are a nightmare. This is primarily due to a phenomenon known as "acid traps."

During the chemical etching process of PCB manufacturing, the etching solution (acid) can get stuck in the narrow crevices created by acute or 90-degree angles. If the acid isn't washed away completely, it continues to eat away at the copper long after the process is finished. This leads to:

• Over-etching: The trace becomes thinner than designed.

• Open circuits: In severe cases, the connection may break entirely, leading to intermittent board failure.

To ensure long-term reliability, it is best practice to avoid creating these traps by using blunt angles or smooth curves.

3. Engineering Aesthetics and EMI

Beyond the physics and chemistry, there is the element of engineering aesthetics. A layout with consistent 45-degree angles or smooth curves looks cleaner and more professional.

Furthermore, for high-current traces often replaced by copper pours, 90-degree corners can concentrate electric fields, potentially increasing electromagnetic interference (EMI). By replacing a sharp corner with two 45-degree bends, you create a more uniform field distribution and a more visually appealing board.

Conclusion

While PCB right-angle routing might not crash a simple, low-speed hobbyist project, it is a habit that can ruin professional high-speed hardware. Between the risks of impedance mismatch, the manufacturing danger of acid traps, and the need for better EMI control, avoiding 90-degree turns is a fundamental skill for any serious designer.
