How to Fix SMT Pick-and-Place Errors and Component Throwing in Modern Assembly Lines?

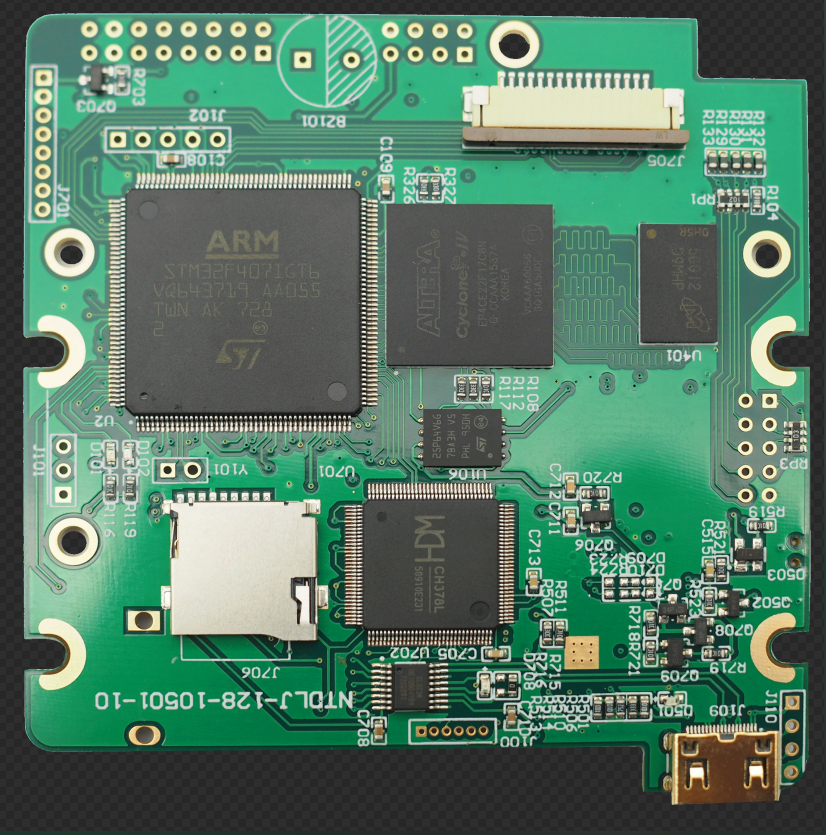

Surface Mount Technology (SMT) has become the backbone of modern electronics manufacturing, but even highly automated assembly lines can suffer production losses due to SMT pick-and-place errors. These issues typically occur during component pickup or placement and can lead to defects, component waste, and lower throughput. This article analyzes the most common causes of pickup failures and component throwing, and provides actionable solutions for stabilizing your SMT process.

1. Causes of Component Pickup Errors in SMT Pick-and-Place Machines

During high-speed operation, pick-and-place heads retrieve components from tape feeders and place them onto the PCB. When pickup reliability declines, defects such as missed pickup, dropped components, and misaligned pickup occur. The core causes include the following:

1.1 Insufficient Vacuum Pressure

Component pickup requires stable negative pressure, typically above 53.33 kPa, to secure components during movement. Low vacuum pressure reduces suction force and results in frequent pickup failures.

Key factors include:

• Vacuum pump degradation



• Dirty or blocked nozzles



• Contaminated vacuum filters on each placement head



Regular cleaning and timely filter replacement help maintain stable airflow and suction performance.

1.2 Nozzle Wear or Damage

Worn, deformed, cracked, or clogged nozzles lead to:

• Reduced negative pressure



• Unstable component pickup



• Increased risk of dropped components



Routine inspection and replacement of damaged nozzles are essential preventive measures.

1.3 Feeder Malfunction or Misalignment

Feeder issues directly influence component pickup accuracy:

• Damaged feeder gears



• Tape not seated correctly on sprockets



• Debris under the feeder



• Worn springs cause improper tape advancement



These conditions may cause component skew, tombstoning, or incomplete pickup. Regular feeder calibration and cleaning help prevent recurring errors.

1.4 Incorrect Pickup Height Setting

The ideal pickup height is when the nozzle just contacts the component surface and then depresses an additional 0.05 mm.

Pickup issues occur when:

• The nozzle presses too deeply, pushing components into the pocket



• The nozzle stops too high, failing to establish suction



Fine-tuning the pickup Z-height for problematic components significantly improves pickup consistency.

1.5 Component Packaging Issues

Defective or inconsistent component packaging from suppliers can also cause pickup failures:

• Incorrect pocket or sprocket pitch



• Excessive adhesion between the paper tape and the cover tape



• Undersized tape pockets



• Variance in component orientation



Improving incoming material inspection reduces the impact of packaging defects on the assembly process.

2. Causes of Component Throwing (Tossing) After Pickup

“Component throwing” occurs when a picked-up component is released before it reaches the solder pad location. The primary causes include the following:

2.1 Incorrect Component Thickness Setting

If the database defines a component thicker than its actual dimension, the nozzle may release the part prematurely—before contacting the solder pad. As the XY table continues its high-speed motion, inertia flings the component away, resulting in throwing.

2.2 Incorrect PCB Thickness Setting

When PCB thickness is overstated, support pins cannot fully lift the PCB to the programmed height. This causes components to be placed in mid-air rather than on the pad, leading to missing placements and increased tossing.

2.3 PCB-Related Issues

Two common PCB conditions contribute to placement inaccuracy:

(1) PCB Warpage

Excessive PCB warpage exceeds machine tolerances, resulting in:

• Inconsistent z-height



• Misalignment



• Incomplete component release


(2) Improper Support Pin Placement

During double-sided assembly, support pins may:

• Press against components on the underside



• Fail to support certain areas due to uneven distribution



Both conditions cause PCB bending, preventing proper placement height and increasing the risk of throwing.

Conclusion: Strengthen SMT Pick-and-Place Stability with Professional PCBA Support

Addressing SMT pick-and-place errors requires systematic control of vacuum performance, nozzle condition, feeder calibration, height programming, and PCB support strategy. By optimizing these parameters, manufacturers can significantly reduce pickup failures, minimize component waste, and enhance line efficiency.
