How Do PCB Design Standards Differ By Industry?

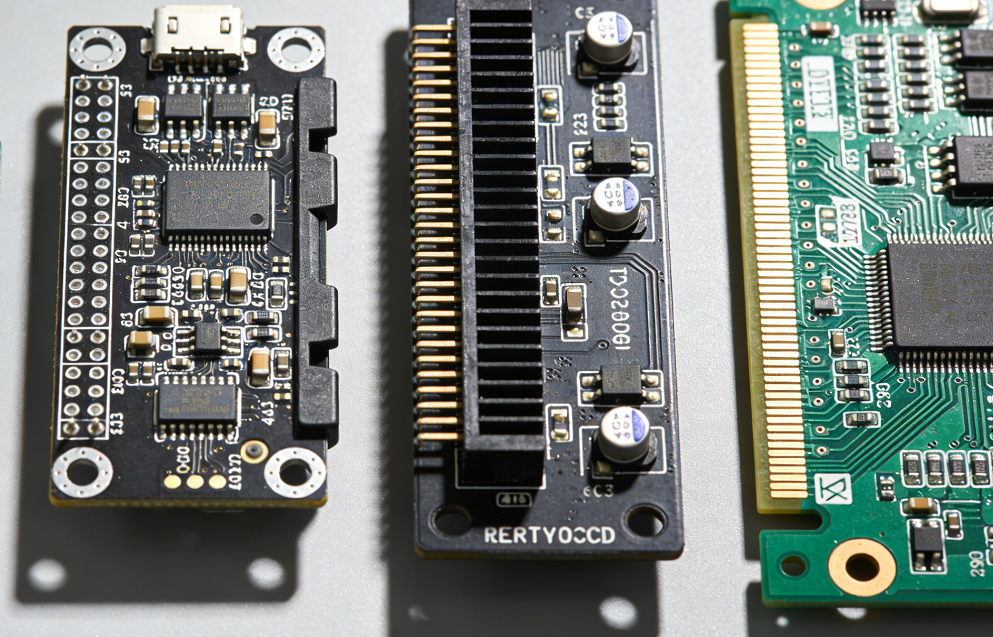

From smartphones in our pockets to engine control units in high-speed vehicles, PCBs are the invisible backbone of modern technology. However, a "one-size-fits-all" approach doesn't work in hardware engineering. Because the performance demands vary wildly across industries, PCB design standards have evolved into specialized frameworks to ensure safety, reliability, and functionality.
Failing to distinguish between these standards is a common pitfall that often leads to certification failures or field defects. Drawing from IPC international benchmarks and PCBGOGO’s deep manufacturing expertise, this guide explores how PCB design standards differ across four pivotal sectors: Consumer Electronics, Industrial Control, Automotive, and Medical Devices.
The Core Dimensions of Variation
The differences in technical standards are primarily reflected in four modules:
Material Selection: Tg (Glass Transition Temperature), CTE, and flame retardancy.
Design Rules: Trace width/spacing, via diameters, and component pitch.
Process Parameters: Etch factors, solder mask thickness, and plating depth.
Inspection Criteria: The strictness of AOI (Automated Optical Inspection), X-ray, and reliability testing.
1. Consumer Electronics: Speed and Miniaturization
In the realm of smartphones, wearables, and tablets, the focus is on being thin, light, and cost-effective. These designs typically follow IPC-2221 and IPC-6012 Class 1 requirements.
Materials: Standard FR-4 (Tg ≥ 130°C), UL94 V-0 flame rating, and copper weights under 1oz.
Design Rules: High-density routing is key. Minimum trace/space is often 3mil/3mil, with via diameters at 0.3mm and BGA pitches above 0.5mm.
Inspection: Basic AOI is used; minor cosmetic defects (like light scratches) are often acceptable if they don't impact function.
PCBGOGO Insight: For ultra-compact consumer tech, we push these PCB design standards further, supporting 2mil/2mil traces and 0.25mm vias with 24-hour rapid prototyping for fast-to-market iterations.
2. Industrial Control: Stability in Harsh Environments
Industrial PCBs (PLCs, inverters, servo systems) must survive wide temperature swings and long duty cycles. These usually adhere to IPC-6012 Class 2.
Materials: High-Tg FR-4 (Tg ≥ 150°C) to prevent delamination, with copper weights ranging from 1oz to 2oz.
Design Rules: Slightly more conservative to ensure yield and longevity. Trace/space is typically 4mil/4mil, with vias at 0.4mm.
Plating: Thicker plating (10-15μm) is required to handle higher current loads and thermal stress.
3. Automotive Electronics: High Reliability & Safety
Automotive boards for engine control or ADAS face extreme vibration and heat. This sector is governed by the rigorous IPC-6012/DS and IATF 16949 quality management systems.
Materials: High-Tg, low-CTE materials (Tg ≥ 170°C) and heavy copper (2oz+) for power dissipation.
Process Parameters: Etch factors must be ≥ 3.5. Boards often require Conformal Coating (three-proof paint) to protect against moisture and salt spray.
Reliability Testing: Beyond standard checks, these boards undergo thermal cycling, vibration testing, and X-ray inspection of solder joints to ensure zero-fault performance.
4. Medical Equipment: Precision and Anti-Interference
Whether it’s a ventilator or an MRI machine, medical PCBs demand absolute precision and compliance with IPC Class 3 and ISO 13485.
Materials: High-Tg FR-4 or Polyimide (PI) for flexibility and heat resistance. Halogen-free materials are often mandated for environmental safety.
Design Rules: Focus on signal integrity and electromagnetic shielding to prevent interference with sensitive life-support sensors.
Process Control: Plating thickness is pushed to 15-20μm, and biocompatibility testing is performed for devices with patient contact.
Comparison Summary Table
Choosing the Right Path for Your Project
The gap between a consumer-grade toy and a medical-grade monitor is defined by the rigor of the PCB design standards applied during the layout and manufacturing phases. Designing to a higher class than necessary can inflate costs, while under-designing can lead to catastrophic product recalls.
As a leading PCB manufacturer, PCBGOGO provides specialized production lines for each of these fields. Whether you need the rapid delivery of consumer tech or the certified reliability of IATF 16949 automotive boards, we ensure your design meets the exact technical benchmarks required for your industry.
