Do PCB Design Rules Impact Yield? 3 Real-World Case Studies
In the world of PCB manufacturing, yield is more than just a metric—it is the lifeblood of profitability. One of the most critical factors influencing this yield is how strictly an engineer follows established PCB design rules. While many companies invest millions in state-of-the-art machinery, they often overlook the importance of design standards, resulting in stagnant yield rates and high scrap costs.
Based on PCBGOGO’s extensive manufacturing data, over 60% of yield issues are "congenital defects" born during the design phase. In fact, nearly 70% of production failures stem from a failure to follow standardized PCB design rules, such as insufficient trace spacing, improper via dimensions, or cramped component footprints. Below, we analyze three real-world case studies to demonstrate how adhering to technical standards directly impacts your bottom line.

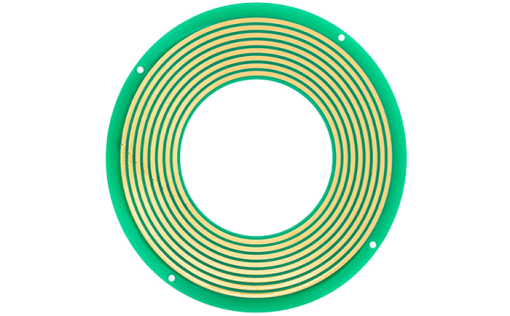

Case 1: Trace Width vs. Etching Reality
The Problem: A consumer electronics client designed a smartwatch PCB with a trace width/spacing of 2mil/2mil. They used standard FR-4 material but did not specify that the board required High-Density Interconnect (HDI) processing.
The Consequence: According to the IPC-2221 standard, standard FR-4 etching typically requires a minimum of 3mil/3mil. Because the traces were too narrow for the chosen process, severe "undercutting" (side etching) occurred, leading to widespread short circuits. The initial trial production yield was a dismal 58%.
The Solution: PCBGOGO engineers recommended adjusting the PCB design rules to a 3mil/3mil standard and switching to high-Tg FR-4 material. By using high-precision etching machines and maintaining an etch factor of 3.5, the yield skyrocketed to 99.3%, while production costs actually dropped by 15%.
Case 2: The "Clogged" Via Diameter
The Problem: An industrial control client designed a PLC (Programmable Logic Controller) with via diameters of 0.3mm and connecting traces of 0.25mm.
The Consequence: IPC-2221 guidelines generally suggest that the via pad should be significantly larger than the drill size to ensure reliability, and the drill itself must be large enough for plating chemistry to flow through freely. In this case, the narrow gap prevented the plating solution from circulating, leading to "hole wall voids"—gaps in the copper plating inside the hole. This resulted in a 30% failure rate due to poor electrical connectivity.
The Solution: We advised the client to increase the via diameter to 0.5mm in accordance with standard PCB design rules. We also implemented pulse plating technology to ensure uniform copper thickness. These changes eliminated the voiding issues entirely, bringing the yield to 99.5% and increasing production efficiency by 20%.
Case 3: BGA Pitch and Solder Bridging
The Problem: An automotive electronics client designed a navigation PCB using a BGA (Ball Grid Array) package with a pitch of 0.4mm.
The Consequence: Per IPC-7351 (Generic Requirements for Surface Mount Design and Land Pattern Standards), a minimum pitch of 0.5mm is recommended for high-yield assembly. The 0.4mm spacing caused uneven solder paste printing and "solder bridging" (short circuits between pads) during the reflow process. The initial yield was only 62%.
The Solution: By adjusting the PCB design rules to allow for a 0.5mm BGA pitch and optimizing the land pattern (pad size), the assembly team was able to use high-precision laser stencils for uniform paste application. The defect rate dropped to below 0.1%, and the final yield hit 99.4%.
How to Standardize for Success
The evidence is clear: PCB design rules are the deciding factor in whether a project succeeds or fails. To protect your yield, follow these four pillars of standardization:
Design Phase: Use professional DFM (Design for Manufacture) software to check for "congenital defects" before sending files to the factory.
Material Selection: Ensure your substrate (FR-4, Rogers, etc.) matches the thermal and density requirements of your design class.
Process Consistency: Work with manufacturers who follow standardized operating procedures (SOPs) to keep parameters like etch factors stable.
Rigorous Testing: Use AOI (Automated Optical Inspection) and flying probe testing to validate that the boards meet the intended standards.
By treating PCB design rules as a mandatory requirement rather than a suggestion, engineers can ensure their products pass through the factory with high efficiency and minimal waste.
