Common PCB Back-Drilling Faults and Troubleshooting: Pitfalls 90% of Engineers Fall Into

21 0 Dec 18.2025, 10:37:36

PCB back drilling is a widely used process in high-speed and high-layer-count PCB fabrication to eliminate via stubs and improve signal integrity. However, in real manufacturing, back-drilling defects frequently lead to yield loss, signal degradation, or even complete product scrapping.

Based on years of hands-on experience with PCB back drilling, many failures—such as excessive residual copper, hole wall carbonization, drilling misalignment, and PCB delamination—follow identifiable patterns. Once the root cause is correctly identified, most issues can be resolved efficiently.

This article systematically summarizes 5 common PCB back-drilling faults, analyzes their root causes, and provides practical troubleshooting and process optimization solutions to help engineers avoid costly production pitfalls.

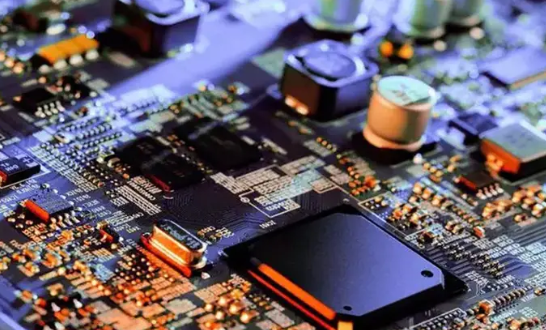

PCB back-drilling

Fault 1: PCB Back-Drilling Misalignment Causing Damage to Adjacent Traces

Back-drilling misalignment is the most severe failure mode in PCB manufacturing. Once adjacent signal traces are drilled through, the board is typically irreparable.

In one 8-layer PCB mass production case, a 0.015 mm drilling offset caused adjacent signal lines to be damaged, resulting in 300 scrapped boards out of 500.

Root Cause Analysis

  • Insufficient positioning accuracy of the back-drilling machine

  • Worn or contaminated PCB reference holes

  • PCB substrate warpage or uneven stacking during drilling

Troubleshooting Checklist

  • Equipment accuracy:
    Measure positioning accuracy using a 2D measuring instrument. Deviations greater than ±0.005 mm indicate insufficient machine precision.

  • Reference hole integrity:
    Inspect reference holes for wear, contamination, or deformation.

  • Substrate flatness:
    Check PCB warpage and stacking uniformity before back drilling.

Solutions

  • Short term: Increase calibration frequency and optimize positioning parameters

  • Long term: Upgrade to high-precision back-drilling equipment (e.g., 6-axis machines)

  • Design phase: Use foolproof reference designs and prevent contamination

  • Process control: Regulate temperature and humidity; pre-press and flatten boards before drilling

Fault 2: Hole Wall Carbonization and Blackening During Back Drilling

Hole wall carbonization is common when back drilling high-frequency PCB materials such as Rogers RO4350B. It appears as blackened or burned hole walls and directly increases signal loss.

Root Cause Analysis

  • Excessive spindle speed generates frictional heat

  • Dull or worn drill bits are causing grinding instead of cutting

  • High material hardness and poor thermal conductivity of RF substrates

Troubleshooting Checklist

  • Check spindle speed (above 150,000 rpm is a high risk)

  • Inspect the drill bit cutting edge condition

  • Confirm drill bit compatibility with high-frequency materials

Solutions

  • Reduce drilling speed by 10–20% compared to FR-4

    • Example: FR-4 at 120,000 rpm → RF material at ~100,000 rpm

  • Replace drill bits every 3,000 holes

  • Use diamond-coated drill bits designed for high-frequency laminates

Fault 3: Excessive Residual Copper After Back Drilling Causing Signal Interference

Excess residual copper is an invisible but critical back-drilling defect. Although not always visible, it increases parasitic capacitance and degrades high-speed signal integrity.

According to IPC-6012, residual copper height must be ≤ 0.05 mm.

Root Cause Analysis

  • Insufficient back-drilling depth

  • Incorrect drill bit diameter

  • Excessive copper plating thickness

Troubleshooting Checklist

  • Measure actual back-drilling depth using depth gauges

  • Compare drill bit diameter with pre-drilled hole size

  • Inspect copper plating thickness

Solutions

  • Recalibrate back-drilling depth parameters and verify with trial drilling

  • Select drill bit diameter 0.03–0.05 mm smaller than the original via

    • Example: 0.30 mm via → 0.27 mm drill bit

  • Control plating thickness to 18–22 μm for optimal conductivity and clean drilling

Fault 4: Burrs and Scratches on PCB Hole Walls

Burrs and scratches are common appearance defects after PCB back drilling. They may lead to poor solderability and reduced insulation reliability.

Root Cause Analysis

  • Chipped or worn drill bit cutting edges

  • Excessive feed rate

  • Insufficient post-drilling cleaning

Troubleshooting Checklist

  • Inspect drill bit edges for wear or damage

  • Verify feed rate (above 15 mm/min increases burr risk)

  • Check whether high-pressure washing and deburring are applied

Solutions

  • Immediately replace damaged drill bits

  • Control feed rate within 6–12 mm/min, depending on hole diameter

  • Perform post-processing:

    • 5 MPa high-pressure water cleaning

    • Chemical deburring to remove resin and copper residues

Fault 5: PCB Delamination and Cracking After Back Drilling

PCB delamination and cracking typically occur in multilayer PCBs or high-Tg materials, mainly due to excessive mechanical stress during drilling.

Root Cause Analysis

  • Improper balance between spindle speed and feed rate

  • Excessive stacking layers during back drilling

  • Incomplete resin curing during lamination

Troubleshooting Checklist

  • Review drilling parameters for stress imbalance

  • Check stacking quantity (more than 6 layers increases risk)

  • Inspect lamination curing quality

Solutions

  • Optimize spindle speed and feed rate to balance cutting force and stress

  • Limit stacked layers to ≤ 4 panels during back drilling

  • Ensure lamination meets IPC-6012 requirements:

    • Interlayer peel strength ≥ 1.5 N/mm

Best Practice: A Systematic Approach to PCB Back-Drilling Troubleshooting

Effective PCB back-drilling problem-solving should follow a clear priority sequence:

Equipment → Process Parameters → Materials

Most defects can be quickly isolated and resolved using this logic. If internal troubleshooting is insufficient, partnering with an experienced PCB manufacturer such as PCBGOGO can significantly reduce risk. Professional manufacturers provide:

  • Extensive back-drilling failure handling experience

  • DFM (Design for Manufacturability) reviews

  • Early-stage risk prevention for mass production

Back-drilling failures are not inherently catastrophic. Identifying the root cause and applying targeted solutions is the key to achieving stable, high-yield PCB mass production.
