Applications of PCB Gold Finger Connector in Automotive Electronics

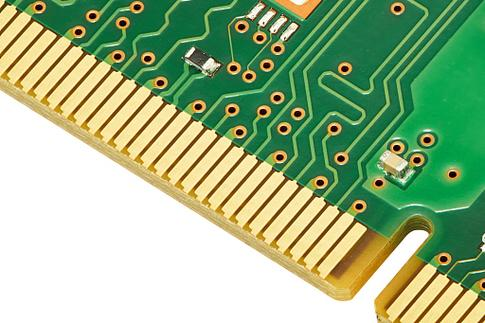

In the realm of automotive electronics, the PCB gold finger connector serves as a critical bridge for precision connections between circuit boards or between a board and an external device. They are not merely miniature high-speed channels for data transmission and power distribution; they are the vital link that ensures the efficient and stable operation of complex automotive systems.

As vehicles move toward lightweight structures, electrification, and intelligence, the demand for high-reliability PCB gold finger connector technology is evolving. Design and manufacturing must now prioritize superior wear resistance, corrosion protection, and signal integrity while adhering to strict automotive standards such as AEC-Q200 and IATF 16949.

Key Application Scenarios in Automotive Electronics

1. Dashboard and Instrument Clusters

The PCB gold finger connector connects the various components of the dashboard, facilitating signal transmission and power connections to ensure accurate real-time displays.

• Typical Applications: Speedometers, HUD (Head-Up Displays), and digital instrument LCD modules.

• Technical Requirements: High vibration resistance, thermal humidity endurance, and low contact resistance stability.

• Recommended Finish: Hard gold plating to guarantee a long contact lifecycle.

2. Audio and Infotainment Systems

In car audio systems, the PCB gold finger connector ensures stable audio signal transmission and reliable device operation.

• Typical Modules: Power amplifiers, DSP audio processors, and infotainment head units.

• Design Focus: Anti-interference for high-speed signals and maintaining low insertion loss.

• Key Metrics: Impedance control and return path integrity to minimize noise coupling.

3. Navigation and Telematics (V2X)

Stability is paramount for navigation systems to ensure data accuracy and system uptime.

• Typical Systems: GPS modules, T-BOX, and V2X (Vehicle-to-Everything) communication.

• Reliability Challenges: Continuous operation and extreme temperature fluctuations ($-40\text{°C}$ to $125\text{°C}$).

• Process Advice: Optimized Nickel/Gold structures to prevent signal attenuation and corrosion.

4. Sensors and Domain Controllers

Autonomous driving functions rely on radars and cameras. Advanced PCBs are used in sensors and intelligent driving domain controllers.

• Coverage: Millimeter-wave radar, LiDAR, camera modules, and ADAS.

• Design Complexity: High-speed SerDes transmission, strict EMI limits, and miniaturization.

• Recommended Capabilities: 4-12 layer HDI boards, high Tg materials, and precise beveling for smooth insertion.

Critical Design Elements for Automotive Grade Connectors

To meet the rigorous demands of the automotive environment, designers should focus on the following manufacturing standards:

Conclusion

With the rapid development of New Energy Vehicles (NEVs) and autonomous driving, the strategic importance of the PCB gold finger connector continues to grow. These components must provide more than just an electrical connection; they must offer long-term stability under the harshest environmental conditions.

Leveraging mature surface treatment processes like ENIG and hard gold plating, PCBGOGO provides comprehensive solutions for every PCB gold finger connector requirement. From rapid prototyping to mass production, we ensure your automotive projects meet the highest safety and performance standards. If you require expert advice on material selection or design support, please contact us today at PCBGOGO.
