Surface Mount Technology (SMT) has become the backbone of modern electronics manufacturing. By mounting electronic components directly onto the surface of a Printed Circuit Board (PCB), SMT enables smaller, lighter, and more powerful electronic devices. This article will delve into the fundamentals of SMT components, their common types, package details, and how to make the right selection for your design.
What Are SMT Components?
SMT Components, or Surface Mount Devices (SMDs), are electronic parts specifically designed for Surface Mount Technology. Unlike traditional Through-Hole Technology (THT) components, which require leads to be inserted through holes and soldered on the reverse side, SMT components are placed directly onto conductive pads (lands) on the PCB surface and are connected using reflow or wave soldering processes. They are characterized by their small size and minimal or non-existent leads, making them crucial for achieving high-density assembly.
Common Types of SMT Components
SMT components cover the full spectrum of electronic functionalities. They are broadly categorized as follows:
Passive Components:
Resistors: Used to limit current and divide voltage. Common packages are Chip Resistors (e.g., 0402, 0603, 0805).
Capacitors: Used for charge storage, filtering, and coupling. The most common types are Multilayer Ceramic Chip Capacitors (MLCCs) and surface-mount tantalum capacitors.

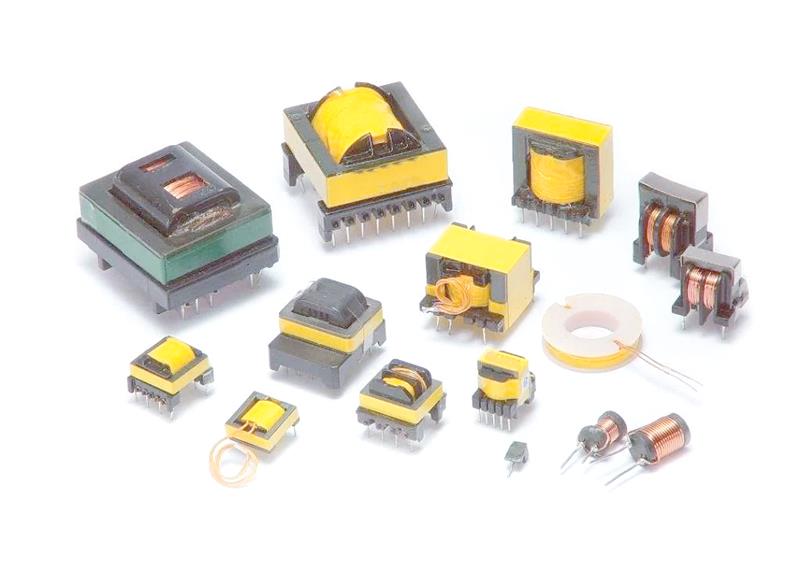

Inductors: Used for energy storage, filtering, and impedance matching. These include Chip Inductors and wire-wound types.
Active Components:
Diodes and Transistors: Used for rectification, amplification, and switching. Common packages are the SOD (Small Outline Diode) and SOT (Small Outline Transistor) series.
Integrated Circuits (ICs): Chips containing complex circuitry. This is the most diverse category, with numerous complex packaging styles.
SMT Component Package Types Explained
The package of an SMT component defines its physical dimensions, lead configuration, and how it connects to the PCB. The correct package selection is vital for automated placement, solder joint reliability, and thermal management.
Package Acronym | Full Name (Common Examples) | Key Features and Applications |
SOP | Small Outline Package | Gull-wing leads on two sides. Common for low-to-mid pin count ICs. |
QFP | Quad Flat Package | Gull-wing leads on all four sides. Suitable for higher pin count microcontrollers and ASICs. |
BGA | Ball Grid Array | Solder ball matrix on the bottom surface, no peripheral leads. Used for high-density, high-performance processors and memory. |
QFN | Quad Flat No-leads | Leads are flush with the package sides; often includes an exposed thermal pad on the bottom. Excellent for small size and thermal dissipation. |
LGA | Land Grid Array | Pad array on the bottom (no solder balls). Often used for high-performance CPUs and applications requiring socketing. |
CSP | Chip Scale Package | The package size is barely larger than the chip die itself (e.g., WLCSP). Ideal for miniaturization (e.g., mobile devices). |
Packaging Trend: Driven by the demand for smaller size and higher performance, BGA and QFN packages—which offer superior thermal and electrical properties—are becoming increasingly prevalent, though they require higher manufacturing precision.
How to Choose the Right SMT Component Package
Selecting the appropriate SMT component package is a critical step in electronic product design. Here are the primary factors to consider:
1. Functionality and Pin Count:
More complex ICs (e.g., FPGAs, high-core processors) require a higher pin count, leading to choices like BGA, LGA, or High-Count QFPs.
Simpler logic gates or discrete components can use smaller SOT or SOP packages.
2. PCB Density and Size Constraints:
For space-constrained designs (e.g., wearables, IoT), prioritize smaller packages like QFN, WLCSP, or miniature passives (e.g., 0201 or 01005).
3. Thermal Management Requirements:
Components with high power dissipation (e.g., power management ICs, high-current drivers) must use packages with exposed thermal pads (common in QFN and specific SOP/QFP variants) to efficiently transfer heat to the PCB.
4. Manufacturing and Rework Capabilities:
SOP and QFP packages are visually inspectable and relatively easy to rework manually.
BGA packages require specialized equipment (X-ray, BGA rework stations) for inspection and repair, increasing manufacturing complexity and cost.
Conclusion
SMT components are the cornerstone of modern electronics, and understanding their types and packages is essential for a successful PCB design. Proper component selection maximizes product performance, reliability, and miniaturization.
