In the realm of Printed Circuit Boards (PCBs), which serve as the backbone of nearly all electrical devices, the testing and final inspection processes are of paramount importance. As the electronics industry continues to burgeon, driven by trends such as 5G, AI, and the miniaturization of devices, ensuring the quality of PCBs has become even more critical.

Importance of Testing and Inspection

PCBs are used in a wide range of applications, from consumer electronics like smartphones and laptops to high - end industries such as aerospace and medical equipment. In these diverse fields, the reliability of PCBs is non - negotiable. A single defective PCB can lead to system failures, product recalls, and significant financial losses. For example, in an AI server, where high - speed data processing is crucial, a malfunctioning PCB could disrupt the entire operation, affecting data analysis and cloud computing services.

Types of Tests

Electrical Testing

1. Continuity and Shorts Testing: This is a fundamental test to ensure that there are no open circuits (breaks in the conductive paths) and no short circuits (unintended connections between different conductive traces). Technologies like flying probe testers are commonly used, especially for small - to - medium - sized production runs. These testers use movable probes that touch the test points on the PCB to check for electrical continuity. In high - volume production, in - circuit testers (ICT) are more prevalent. ICTs use a customized fixture with multiple probes to simultaneously test a large number of electrical parameters on the PCB, including resistance, capacitance, and inductance values of components mounted on the board.

2. Impedance Testing: With the increasing demand for high - speed data transmission in applications such as 5G communication and high - performance computing, impedance matching on PCBs is crucial. Impedance testing measures the characteristic impedance of the PCB traces to ensure that signals are transmitted without distortion. Tools like time - domain reflectometers (TDR) are used for this purpose. TDR sends a step - voltage signal down the PCB trace and analyzes the reflected signal to determine the impedance. Any impedance mismatches can lead to signal reflections, which can degrade the quality of the transmitted data.




Physical and Mechanical Testing

1. Visual Inspection: This is the most basic form of inspection, often carried out at multiple stages of the PCB production process. In the past, it was mainly done manually, but nowadays, automated optical inspection (AOI) systems are widely used. AOI systems use cameras and image - processing software to detect defects such as missing components, misaligned components, solder bridges, and damaged traces. These systems can achieve high levels of accuracy and speed, making them suitable for high - volume production.

2. Mechanical Stress Testing: PCBs may be subjected to mechanical stress during their use, such as vibrations in automotive or aerospace applications. Mechanical stress testing, including vibration testing and shock testing, is performed to ensure that the PCB can withstand these forces without getting damaged. In vibration testing, the PCB is placed on a shaker table that simulates different vibration frequencies and amplitudes. The PCB's performance and integrity are monitored during the test to detect any signs of failure, such as component detachment or trace cracking.




Environmental Testing

    1.Temperature and Humidity Testing: PCBs need to function properly in a variety of environmental conditions. Temperature and humidity testing exposes the PCBs to different temperature and humidity levels, simulating real - world usage scenarios. For example, in a tropical climate, high humidity and temperature can cause corrosion of the PCB's components and traces. In this test, PCBs are placed in environmental chambers where the temperature and humidity can be precisely controlled. The boards are monitored for any signs of performance degradation or physical damage over a specified period.

    2.Thermal Cycling Testing: This test involves repeatedly cycling the PCB through a range of temperatures, typically from a low temperature (e.g., - 40°C) to a high temperature (e.g., 125°C). The purpose is to simulate the thermal stress that the PCB may experience during its lifespan, such as during power - on and power - off cycles. Thermal cycling can cause materials on the PCB, such as solder joints and components, to expand and contract at different rates, which may lead to fatigue and failure over time.

Industry Trends in Testing and Inspection

The PCB industry is constantly evolving, and so are the testing and inspection methods. With the rise of Industry 4.0 and the Internet of Things (IoT), there is a growing trend towards smart manufacturing and automated testing. AI and machine learning are being integrated into testing equipment to improve defect detection accuracy and speed. For example, AI - powered AOI systems can learn from large datasets of defective and non - defective PCBs to better identify subtle defects that may be missed by traditional image - processing algorithms.

Another trend is the development of in - line testing solutions. Instead of testing the PCBs at the end of the production line, in - line testing allows for real - time monitoring and correction of production processes. This reduces the likelihood of producing a large number of defective boards and improves overall production efficiency.

Conclusion

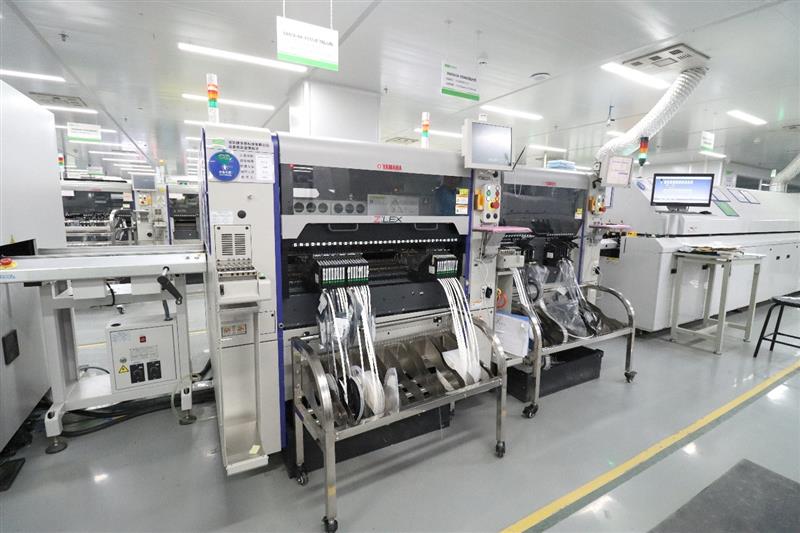

At PCBgogo, we are at the forefront of these industry trends. We understand the critical importance of comprehensive testing and inspection in delivering high - quality PCBs. Our state - of - the - art testing facilities are equipped with the latest technologies, from advanced electrical testing equipment to sophisticated environmental chambers. We also leverage AI and machine learning in our AOI systems to enhance defect detection. By implementing in - line testing solutions, we ensure that any production issues are identified and resolved promptly, minimizing waste and maximizing efficiency. As the PCB industry continues to grow and evolve, we are committed to staying ahead of the curve, providing our customers with the highest - quality PCBs through rigorous testing and inspection processes.
