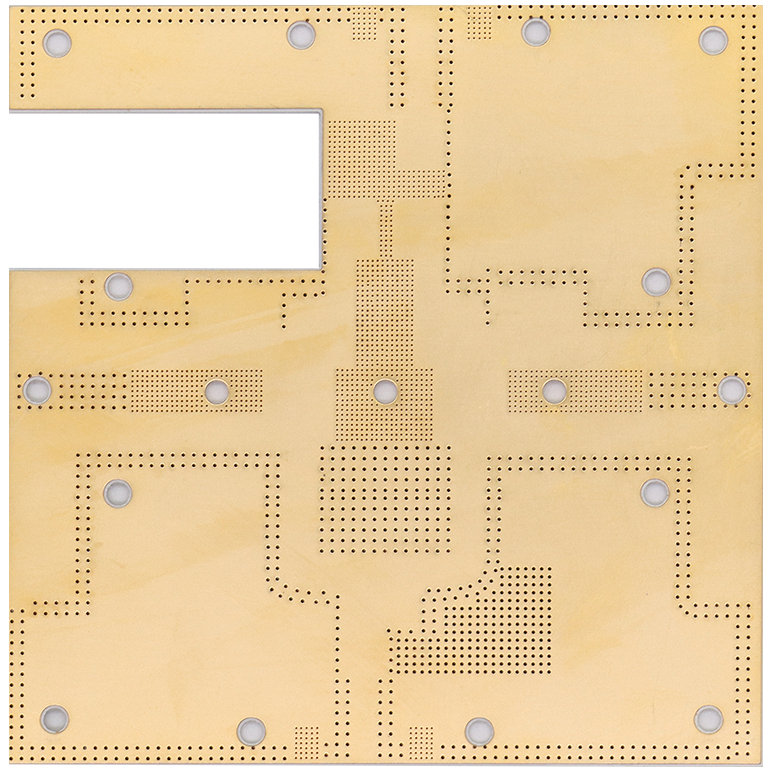

Have you ever noticed that the pads used for soldering components and the "gold fingers" used for connections on a circuit board are always shiny and golden? Many might think this is just for aesthetics, but in reality, this "golden armor" is crucial—it's about the PCB's reliability and your product's lifespan.

This layer of gold isn't just for looks; it's there to solve a core problem: oxidation. Exposed copper pads in the air are highly susceptible to oxidation, forming a layer of copper oxide that can severely affect soldering reliability, leading to issues like dry joints or delamination. Therefore, in the final step of PCB manufacturing, we "gild" the board with a surface finish. Today, let's discuss two of the most common "gilding" methods: Electroless Nickel Immersion Gold (ENIG) and Hard Gold Plating.

ENIG (Electroless Nickel Immersion Gold): The PCB's "Golden Bath"

ENIG, as the name suggests, is a chemical plating process. You can imagine it as giving the PCB a "golden bath": the board is immersed in a special chemical solution (containing nickel and gold), where a series of chemical reactions first create a layer of nickel on the copper surface, and then a thin, uniform layer of gold is "deposited" on top of the nickel.

This process has several significant advantages:

• Extremely Flat Surface: The gold layer is very uniform, making the pad surfaces exceptionally flat. This is critical for fine-pitch components (like BGAs and QFPs) that require precision soldering. A flat surface ensures the solder paste is evenly applied, preventing short circuits or dry joints.

• Excellent Solderability: The gold layer effectively protects the underlying nickel and copper from oxidation, ensuring good solderability.

• Moderate Cost: Because the gold layer is thinner than in electroplating, ENIG is more cost-effective. It's widely used in consumer electronics, mobile phones, and computer motherboards.

However, ENIG has its drawbacks. The thin gold layer is not very durable. If you need a connection that will be plugged and unplugged many times, like a USB port or a memory stick's gold fingers, ENIG isn't a suitable choice.

Hard Gold Plating: The PCB's "Golden Armor"

Unlike ENIG's "golden bath," hard gold plating is an electrochemical plating process. It’s like giving the PCB a suit of "armor": an external current is used to attract and deposit gold ions onto the board's surface. This method allows for a much thicker gold layer than ENIG, and it often includes a small amount of cobalt or nickel to increase hardness, hence the name "hard gold."

The advantages of hard gold plating are very clear:

• Superior Durability: Because the gold layer is thicker and harder, the plated surface can withstand thousands or even tens of thousands of plug-and-unplug cycles without performance degradation. This makes it the perfect choice for "gold finger" applications.

• Excellent Conductivity: The thick gold layer provides excellent electrical conductivity.

However, hard gold plating also has its limitations:

• Less Flat Surface: The current distribution during the electroplating process can be uneven, leading to inconsistencies in the gold layer's thickness. The surface is not as flat as with ENIG, which can be a challenge for soldering fine-pitch components.

• High Cost: A thick gold layer means a higher cost.

How to Choose: ENIG or Gold Plating?

This is a question of balancing "application" and "cost."

• What do you need? If your product requires high-precision soldering, like a phone motherboard or a laptop, and won't be frequently plugged and unplugged, then ENIG is the best choice. It balances soldering quality with cost.

• Does your product need durability? If your product has an interface that requires repeated plugging and unplugging, such as memory sticks, PCIe slots, or USB ports, then hard gold plating is the only reliable option. Its durability guarantees a reliable connection over the long term.

Conclusion:

We at PCBgogo understand that a PCB's surface finish is a vital link in ensuring product quality and lifespan. We not only provide the most common ENIG and gold plating services but also offer various other surface finishes like OSP and Immersion Silver to meet our customers' diverse needs. Our team of engineers provides professional advice based on your design and application, ensuring your PCB achieves the best possible soldering performance while meeting long-term reliability requirements. We firmly believe that every detail in the process of a seemingly simple circuit board carries our commitment to excellence.
