In the ever-evolving landscape of electronics, Printed Circuit Boards (PCBs) stand as the unsung heroes, silently orchestrating the symphony of electrical connections that power our modern world. As the demand for smaller, faster, and more powerful electronic devices surges, driven by trends like 5G, IoT, and AI, the world of PCBs is undergoing a remarkable transformation. This article will explore the diverse types of PCBs, their unique characteristics, and how they are adapting to meet the challenges of today's high-tech landscape.
Classification by Layers
Single - Layer PCBs
Single - layer PCBs are the simplest form. With conductive traces on only one side, they are cost - effective and easy to manufacture. They find applications in basic electronics such as remote controls, simple toys, and some low - end consumer devices. However, their limited complexity restricts their use in more advanced applications.
Double - Layer PCBs
Double - layer PCBs have traces on both sides, connected by vias. This design doubles the available routing space, enabling more complex circuits. They are commonly used in audio equipment, mid - range electronics, and some automotive components. Their relatively low cost and increased functionality make them a popular choice for many applications.

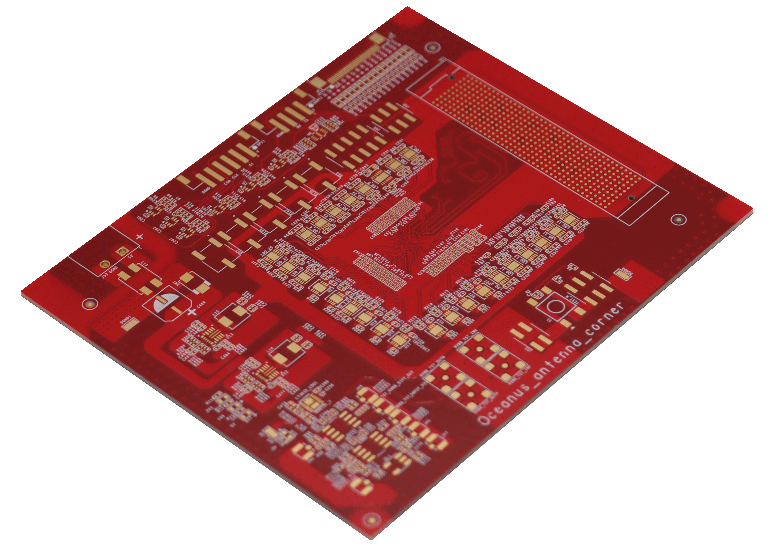

Multi - Layer PCBs
Multi - layer PCBs, with three or more layers, are the workhorses for high - performance electronics. Layers are stacked and interconnected through vias, providing a high - density routing solution. In the context of the current technology trends, multi - layer PCBs are crucial for 5G base stations, high - end servers, and advanced computing devices. For example, in a 5G base station, the PCB needs to handle high - speed data transmission and complex signal processing, which multi - layer PCBs can efficiently support.
Classification by Substrate Material
Rigid PCBs
Rigid PCBs, made from materials like FR - 4 (a fiberglass - reinforced epoxy resin), offer excellent mechanical stability. They are widely used in a variety of applications, from desktop computers to industrial control systems. Their rigidity ensures that components are held firmly in place, making them suitable for environments where vibration and mechanical stress are factors.
Flexible PCBs (FPCs)
FPCs, crafted from flexible materials such as polyimide or polyester, are revolutionizing the electronics industry, especially in wearable devices and compact electronics. Their ability to bend and conform to irregular shapes allows for innovative designs. In smartwatches, for instance, FPCs enable the connection between the display and the main board in a space - efficient manner, contributing to the device's sleek and compact form.

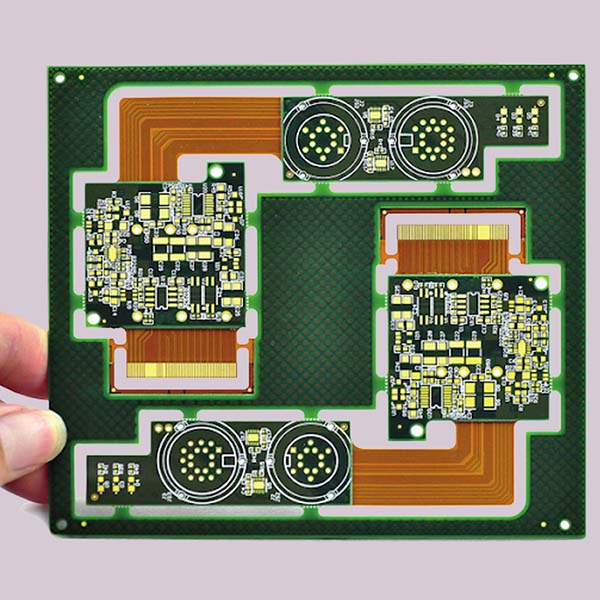

Rigid - flex PCBs combine the best of both worlds, featuring both rigid and flexible sections. This type of PCB is highly valued in advanced medical devices and aerospace applications. In a portable medical monitor, the rigid part can house the main processing components, while the flexible part can be used to connect to sensors in a way that allows for easy movement and adaptability.
Classification by Special Applications
High - Density Interconnect (HDI) PCBs
HDI PCBs are designed to meet the need for higher component density and finer traces. They use advanced manufacturing techniques like laser - drilled microvias. In the era of miniaturized electronics, HDI PCBs are essential for smartphones, tablets, and high - end cameras. In the latest smartphones, HDI PCBs enable the integration of multiple high - performance components in a limited space, enhancing the device's overall functionality.
High - frequency PCBs are engineered to handle high - frequency signals with minimal loss. They are crucial for 5G communication, satellite systems, and radar applications. As 5G continues to roll out globally, high - frequency PCBs are in high demand to ensure fast and reliable data transmission.
Power PCBs
Power PCBs are optimized for handling high currents and voltages. They are used in power supplies, electric vehicles, and industrial power systems. In an electric vehicle's charging system, power PCBs play a vital role in efficiently managing the high - voltage and high - current power transfer.
Conclusion
At PCBgogo, we are at the forefront of this dynamic industry, witnessing firsthand the continuous evolution of PCB technology. We are committed to providing our customers with a comprehensive range of PCB solutions, whether they need a simple single - layer board for a hobby project or a complex multi - layer, high - frequency board for a cutting - edge 5G application. As the demand for more advanced and customized PCBs grows, we invest in state - of - the - art manufacturing equipment and highly skilled personnel to ensure that we can meet and exceed our customers' expectations. Our goal is to be the partner of choice for all PCB needs, driving innovation and quality in every project we undertake.
