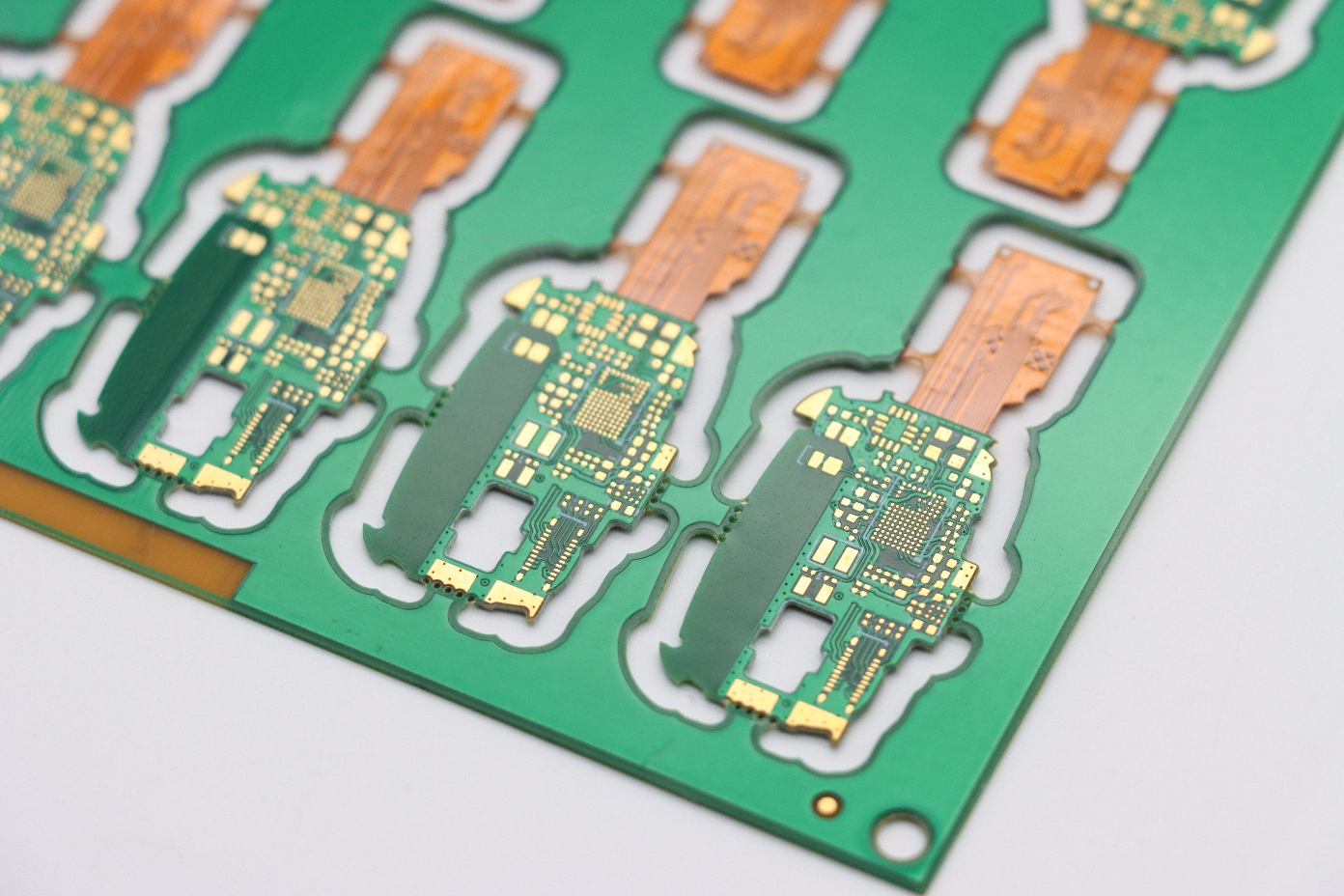

In the intricate world of PCB manufacturing, where components are becoming smaller and more densely packed, every detail matters. One of the most crucial yet often overlooked elements is the solder mask, the thin, protective layer that gives most PCBs their signature green color. Its primary job is to protect the copper traces from oxidation and prevent solder bridges—unwanted connections between adjacent pads—during the soldering process.

But as components like QFPs and BGAs shrink to ultra-fine pitches, creating a clean, effective solder mask becomes a "micron-level art" that balances a host of technical challenges. It's a delicate dance between preventing electrical shorts and avoiding the so-called "green contamination" that can compromise solder joint reliability.

The Challenge of the Solder Mask Bridge

For through-hole components, applying a solder mask is straightforward. But for fine-pitch surface-mount components, the spaces between adjacent pads are extremely small—often less than 0.2mm. In these tiny gaps, the solder mask forms a crucial barrier known as a solder mask bridge or "solder web."

The purpose of this bridge is simple: to prevent solder from flowing from one pad to its neighbor, causing a short circuit. However, creating a perfect solder mask bridge is incredibly difficult due to several factors:

• Solder Mask Ink Viscosity: The solder mask ink must be liquid enough to be applied evenly, but viscous enough to stay in place without bleeding into the pads.

• Screen Printing Limitations: The traditional method of screen printing solder mask has physical limitations. It's challenging to print a perfectly straight, thin line without smearing or inconsistencies.

• Exposure and Development: The photolithographic process used to pattern the solder mask requires precise control of exposure time and developing solution to ensure the bridges are fully formed and the pads are perfectly clear.

If the solder mask bridge is too thick, it can encroach on the pad, reducing the solderable area. If it's too thin or breaks during the process, it fails to prevent a short. This precision is what makes solder mask a micro-engineering feat.

The Green Contamination Problem

While a well-defined solder mask bridge is critical for preventing shorts, a new problem can arise from excessive solder mask on the pads themselves. This is known as "green contamination."

Green contamination occurs when the solder mask ink either bleeds onto the pad or is not completely removed during the development process. This thin layer of residue can prevent the solder from properly wetting the pad, leading to weak or "cold" solder joints. This is a significant issue in high-reliability applications like automotive electronics and medical devices, where even a single bad solder joint can lead to product failure.

Advancements in Technology: Towards a More Perfect Solder Mask

The industry has responded to these challenges with significant technological advancements:

• Liquid Photoimageable Solder Mask (LPI): This is the industry standard today. LPI is a liquid polymer that is coated onto the board and then exposed to UV light through a film or direct imaging system to define the pattern. This photolithographic process is far more precise than traditional screen printing, allowing for much finer solder mask bridges and better control over the final pattern.

• Direct Imaging (DI) Technology: A modern evolution of LPI, Direct Imaging systems use a laser or digital light source to "draw" the solder mask pattern directly onto the board, eliminating the need for a physical film. This technology offers unparalleled precision and registration accuracy, making it ideal for the ultra-fine pitches of modern components.

• Eco-Friendly Inks: In line with global sustainability trends, there's a growing push for more environmentally friendly solder mask inks. These inks are often UV-curable and are free from harmful solvents, reducing volatile organic compound (VOC) emissions during manufacturing. This trend is driven by both regulatory pressure and a corporate commitment to green manufacturing practices.

These innovations are particularly relevant for new technologies like Mini-LED displays, where thousands of tiny LEDs are packed onto a single PCB, and automotive electronics, which require impeccable quality and reliability under harsh conditions.

Our Perspective at PCBgogo

At PCBgogo, we understand that solder mask is much more than just a coat of paint—it is a critical and complex part of the manufacturing process. For us, mastering the "micron-level art" of solder mask is essential to delivering the high-quality PCBs our customers rely on. We have invested in state-of-the-art LPI and DI equipment to ensure that our solder mask bridges are perfectly defined, preventing shorts on fine-pitch components while avoiding green contamination that can compromise solder joint reliability.

We are not just following industry trends; we are leading them. By utilizing the latest generation of high-precision inks and adopting environmentally conscious practices, we are committed to providing you with boards that meet the highest standards of performance and sustainability. Our dedication to this fine art of manufacturing ensures that your complex designs are brought to life with the precision and reliability they deserve.
