The electronics industry, while driving innovation, has long faced a significant challenge: its environmental footprint. The traditional manufacturing of Printed Circuit Boards (PCBs) is a particularly water-intensive process, relying on chemical etching that generates a substantial amount of copper-containing wastewater. This is a problem the industry has grappled with for decades.

But what if there was a way to make PCBs without this polluting process? This is no longer a hypothetical. A revolutionary technology, often referred to as "copper-free etching" or "no-etch" technology, is poised to fundamentally change how we think about green PCB manufacturing, moving the industry toward a future with zero wastewater discharge.

The Problem with Traditional Etching

The conventional subtractive process for making PCBs is a chemical-heavy affair. After the desired circuit pattern is defined, the unwanted copper is removed using a strong chemical etchant, typically an acidic or ammoniacal solution. This process, while effective, has major drawbacks:

• Wastewater Generation: The etching solution becomes saturated with dissolved copper, creating a highly toxic, copper-laden wastewater that requires complex and costly treatment before it can be discharged.

• Environmental Impact: Improperly treated wastewater poses a significant threat to aquatic ecosystems.

• Material Waste: The etched copper is a lost material. While some of it can be reclaimed, a large portion is not effectively recycled, representing a considerable waste of resources.

As global regulations on industrial waste become stricter, and consumer demand for sustainable products grows, the need for a more environmentally friendly manufacturing process has become urgent.

The Innovation: Copper-Free Etching

The "copper-free" or "no-etch" technology offers a radical alternative by completely eliminating the etching step. Instead of removing copper, it uses an advanced semi-additive process (SAP) or modified semi-additive process (mSAP) that builds the circuit traces from the ground up on a base material with no copper foil to begin with.

Here’s a simplified breakdown of the core concept:

1. Start with a Blank Canvas: The process begins with a non-conductive laminate.

2. Apply a Seed Layer: A thin, conductive layer (often a non-copper material) is applied to the entire surface.

3. Pattern and Plate: The circuit pattern is then imaged, and copper is selectively electroplated only onto the areas that will form the circuit traces.

4. No Etching: Because there is no bulk copper to remove, the final, delicate step of chemical etching is completely bypassed. The thin seed layer is typically removed with a simple, non-toxic cleaner or a much less aggressive process that doesn't generate copper wastewater.

This isn't just a minor tweak; it's a paradigm shift. By not etching, the process completely bypasses the most polluting step in traditional PCB manufacturing.

Key Advantages of This Green Technology

The benefits of copper-free etching extend far beyond environmental sustainability:

• Zero Wastewater Discharge: This is the headline benefit. By eliminating the copper etching process, manufacturers can achieve a near-zero wastewater discharge, dramatically reducing their environmental footprint and compliance costs.

• Enhanced Precision: The process allows for the creation of ultra-fine lines and spaces (often below 10μm), which is essential for high-density circuits used in advanced applications like 5G, AI, and IC packaging. This level of precision is virtually impossible to achieve with traditional subtractive methods due to side-etching.

• Resource Efficiency: The process is much more efficient with materials. Copper is only deposited where it's needed, minimizing material waste and cost.

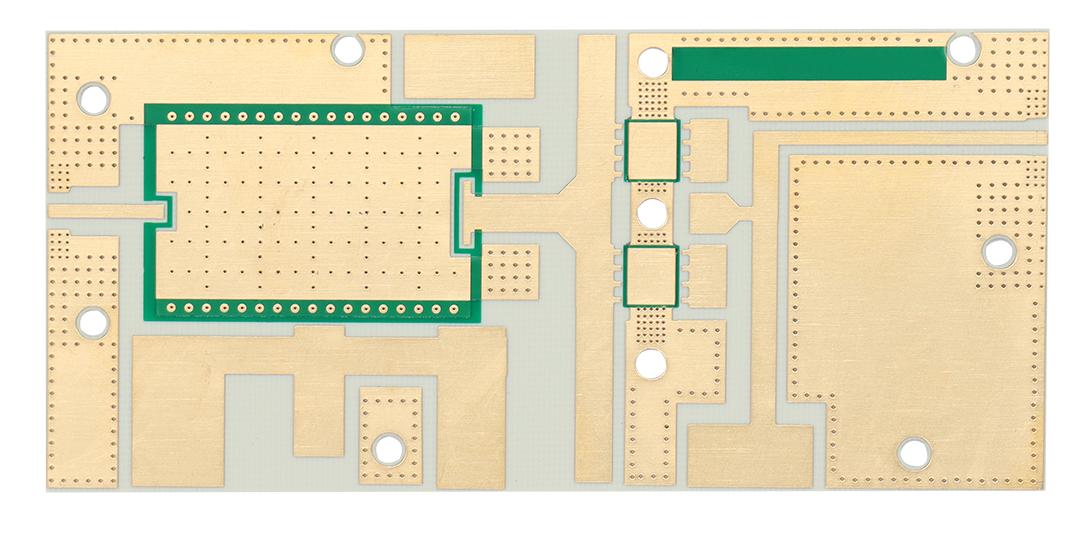

This technology is already being implemented by leading manufacturers, particularly in the production of high-end, high-frequency PCBs and IC substrates. As the demand for both performance and sustainability grows, this process is set to become the new standard for the industry.

Our Perspective at PCBgogo

At PCBgogo, we believe that true innovation encompasses both technological advancement and environmental responsibility. We have long recognized the shortcomings of traditional manufacturing methods and have been actively researching and investing in greener alternatives.

We are proud to be at the forefront of this green revolution. By embracing advanced processes that minimize waste and eliminate harmful byproducts, we are not only providing our customers with higher-quality, more precise PCBs but also contributing to a more sustainable future for our industry and our planet. We understand that our role as a manufacturer extends beyond just building boards; it's about building them responsibly. Our commitment to green manufacturing is not a concept—it's a core part of our mission, ensuring that your next-generation designs are not only high-performing but also environmentally sound.
