Where Do the "Pinholes" on Pads Come From? Analysis of Plating Defects in PCB Copper Deposition Process

486 0 Aug 14.2025, 09:25:59

Nowadays, electronic devices are becoming increasingly thin and light, with circuits getting denser and denser. This has forced PCB pads to be made smaller, and the requirements for the copper deposition process have also risen accordingly. Just think, in high-precision equipment like 5G base stations and millimeter-wave radars, even a tiny pinhole of a few microns on a pad can cause signal interruption or direct solder joint detachment. These seemingly insignificant "little holes" are actually extremely troublesome plating defects in the copper deposition process, hiding a chain reaction of process details behind them.


What Are Copper Deposition Pinholes?

Copper deposition pinholes are tiny holes in the copper plating of PCB pads, usually with a diameter between 1 and 50 microns. They are almost invisible to the naked eye but are enough to damage the integrity of the plating. It's like a fishing net full of fine holes; it looks complete, but in fact, it can't hold the current at all. In high-frequency circuits, pinholes can cause signal reflection and attenuation; on the pads of power devices, they may lead to overheating due to current concentration, eventually causing equipment failure.


The Four Main Culprits of Pinhole Formation

  1. Unclean Substrate Surface

The surface of the substrate before copper deposition is like the ground where a foundation is to be laid. If there is oil, oxide layer or dust, the copper layer can't adhere firmly. For example, the substrate touched by hands will leave greasy substances, and the unrinsed potion after etching will form an oxide film. These "invisible obstacles" will make copper ions "detour" during deposition, eventually forming small holes. During mass production, if the brush in the cleaning tank is worn out, there will be uncleaned areas, and the entire batch of boards may have pinholes.


2. Incorrect Concentration of Copper Deposition Solution

The concentrations of copper sulfate, formaldehyde and sodium hydroxide in the copper deposition solution must be properly proportioned. If there is not enough formaldehyde, the reduction rate of copper ions will be too slow, and the plating will have "faults"; if there is too much sodium hydroxide, it will cause other reactions. The generated cuprous oxide particles will be embedded in the plating like small stones, resulting in pinholes. It's like making dough: if there's too much water, add flour; if there's too much flour, add water. An excess or deficiency of any component will break the balance. Especially in automated production lines, poor circulation of the potion can easily cause local concentration imbalance.


3. Unstable Process Parameters

During copper deposition, temperature and time have a great impact, just like baking bread. If the temperature of the liquid in the tank suddenly changes by more than ±2℃, the deposition rate of copper ions will be different - it piles up quickly in high-temperature areas and concave in low-temperature areas. If the copper deposition time is insufficient, the thickness of the plating can't meet the requirements, and those small pits on the substrate can't be covered; if the time is too long, the plating will be too thick and crack, which will instead lead to pinholes. When producing multi-layer boards, the local stress caused by misalignment between layers may also cause pinholes after copper deposition through cold and heat changes.


4. Malfunctioning Filtration System

Impurity particles in the copper deposition tank are the "accomplices" of pinholes. If the filter element is blocked and not replaced in time, those micron-sized dust particles will stick to the substrate surface along with the potion. When the copper layer is deposited, it bypasses these impurities, forming circles of pinholes. It's like when there are small sand grains in the base layer when tiling, the tiles will eventually hollow out. Especially when producing high TG substrates, if the small molecular substances seeping out of the substrate are not filtered out, they are more likely to become the "seeds" of pinholes.


The Chain Hazards of Pinholes

In automotive electronics, pinholes in the pads of airbag control boards may cause signal delay at critical moments; in medical equipment, pinholes on the PCB of monitors will lead to poor contact and inaccurate data. As PCBs develop towards HDI and arbitrary layer interconnection, the pinhole problem of blind and buried via pads is more hidden, and it is often exposed in the temperature cycle link of reliability testing - repeated cold and heat shocks will crack the copper layer at the edge of pinholes, eventually causing greater failures.


Targeted Solutions

  1. Upgrading Pretreatment Process

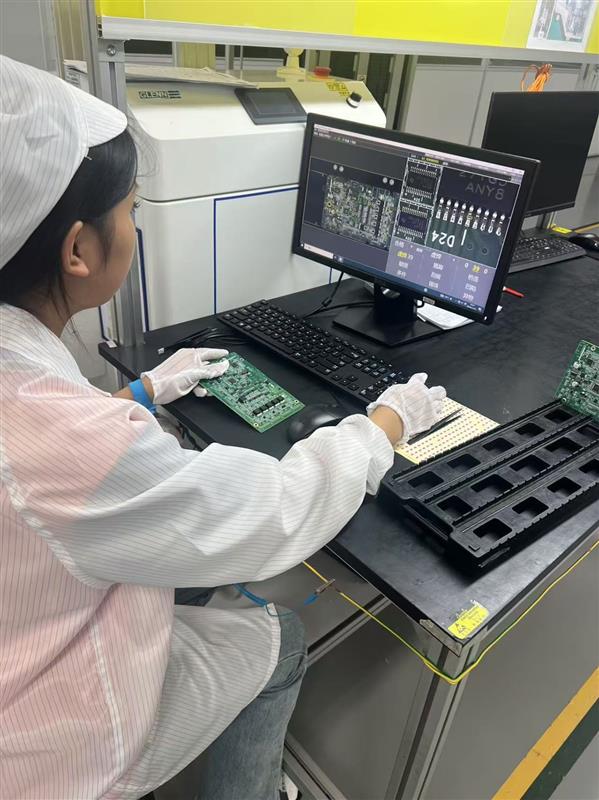

Using plasma cleaning instead of traditional chemical cleaning can completely remove organic pollutants on the substrate surface, especially suitable for low-stress treatment of flexible PCBs. Equipped with online AOI detection, it can find uncleaned areas in real-time and prevent them from entering the next process.


2. Intelligent Potion Management System

Introduce AI-driven concentration monitoring equipment to automatically detect the composition of the copper deposition solution every 15 minutes, accurately add the required substances, and control the concentration change within ±0.5%. Coupled with the potion circulation and stirring device, it eliminates the concentration difference in the tank.


3. Closed-Loop Control of Process Parameters

Use an infrared thermometer to monitor the temperature of the tank liquid in real-time, and automatically adjust the power of the heating tube through the PID algorithm. Preset the copper deposition time according to different board thicknesses, and adjust it in combination with the online coating thickness measuring instrument to ensure accurate parameters.


4. Multi-Stage Filtration and Regular Maintenance

Use 0.2-micron precision filter elements and automatically backwash every 4 hours. Formulate a strict preventive maintenance plan, regularly replace the filtration system according to the production batch, and clean the tank body to avoid impurity accumulation.



At PCBgogo, we treat pinhole defects as Class A quality issues. By introducing imported copper deposition production lines from Germany, equipped with a triple filtration system and a real-time process monitoring platform, we control the pinhole defect rate below 0.01%. Our engineering team has also developed personalized pretreatment schemes for different substrates. In 5G millimeter-wave PCB production, by optimizing the copper deposition rate curve, we have successfully solved the pinhole problem of micro pads. For PCB manufacturing, plugging pinholes is not only about controlling defects but also about building a solid "current defense line" for electronic equipment - this is our commitment to quality.
