The Evolution of the Micro-Via: From Mechanical Drilling to Laser-Drilled Blind & Buried Vias

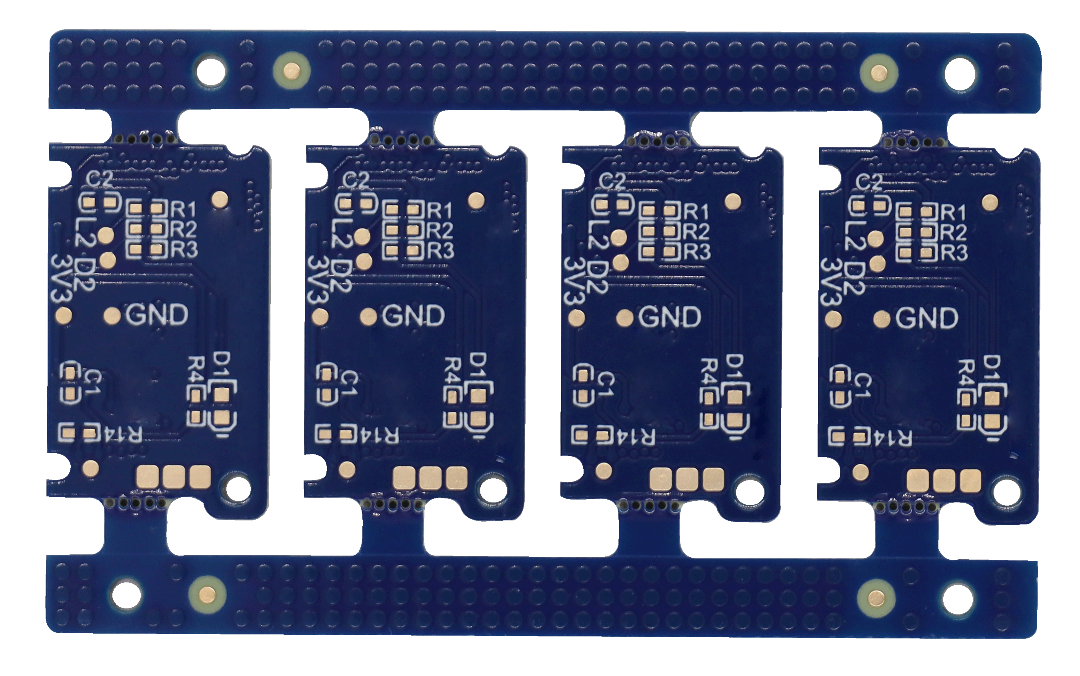

In the intricate world of printed circuit boards, a single, minuscule feature holds the key to the entire board's functionality: the hole. These tiny holes, or vias, are the vital bridges that connect the different layers of a PCB, allowing electrical signals to travel vertically. Their size and placement directly determine a board's density and performance. As we push the boundaries of electronics, the evolution of drilling technology—from brute-force mechanical drills to pinpoint-precise lasers—is a testament to our industry's constant innovation.

This is the story of how a "hole" can define an entire board, and why the right drilling technique is more critical now than ever before.

A Tale of Two Drilling Methods

For a long time, the workhorse of the PCB industry was the mechanical drill. Using a tiny carbide drill bit, a machine would bore holes straight through the entire board stack-up. This method is still widely used today for through-holes, which are essential for component leads and for connecting all layers of a conventional PCB. However, mechanical drilling has inherent limitations. The drill bits have a minimum diameter, and creating smaller holes comes with challenges of breakage and wear. More importantly, it can only create holes that go all the way through the board.

Enter the laser drill. This technology revolutionized PCB manufacturing by enabling a new level of precision and flexibility. Using a focused laser beam—typically a CO2 laser for drilling through fiberglass and a UV laser for finer holes and more delicate materials—the machine ablates material layer by layer. This non-contact process avoids the physical stress and debris associated with mechanical drills and, crucially, allows for non-through-hole drilling.

Unveiling the Blind and Buried Vias

The true power of laser drilling lies in its ability to create two types of holes that are impossible with mechanical drills: blind vias and buried vias. Understanding these is key to comprehending the leap in PCB technology.

• Blind Vias: A blind via connects an outer layer of the PCB to one or more inner layers, but does not go all the way through the board. Think of it as a vertical cul-de-sac. It's "blind" because you can't see the bottom from the top.

• Buried Vias: A buried via connects two or more inner layers of the PCB but has no contact with the outer layers. It is completely "buried" within the board's core.

These micro-vias (typically ≤100μm in diameter) are the foundation of High-Density Interconnect (HDI) boards. By using blind and buried vias, designers can create a much tighter, more compact board layout. This is vital for modern devices that require more functionality in a smaller footprint. They free up valuable space on the outer layers for component placement and simplify complex routing, leading to a smaller, more efficient final product.

The Art of Complex Stacking

The real artistry of HDI design comes from combining these different types of vias. We often use two main configurations:

• Stacked Vias: This involves placing a via directly on top of another via, connecting multiple layers in a straight vertical line. This requires extremely high precision and is only achievable with laser drilling.

• Staggered Vias: This involves offsetting the vias on different layers. While less direct than stacking, it can be a more reliable approach for certain designs, particularly when a direct path isn't possible or desirable.

Laser technology makes these intricate designs possible. The fine-tuned beam can precisely drill a blind via to a specific depth, then a subsequent process can drill another on top of it, creating a perfect vertical connection. This ability to "stack" or "stagger" vias is why modern, multi-layer HDI boards are so much smaller and more powerful than their predecessors.

The Evolution Continues

The journey doesn't stop here. The demand for ever-smaller and faster electronics, particularly in high-end applications like semiconductor packaging and IC substrates, is pushing drilling technology even further. The industry is already seeing the development of Through-Glass Vias (TGV), a technique that uses lasers to drill microscopic holes through a glass core, enabling even higher density and better signal integrity for next-generation devices. This is a clear indicator that the "hole" will continue to be a key area of innovation for years to come.

Our Perspective: The Experts in Precision

At PCBgogo, we understand that a circuit board is only as good as its connections. That's why we’ve heavily invested in state-of-the-art laser drilling technology. For us, a drill machine isn't just a tool; it's a testament to our commitment to precision and quality. We don't just offer through-holes; we are specialists in complex blind and buried via stacks that are critical for modern HDI boards. Our expertise in navigating the nuances of staggered vs. stacked vias, combined with our advanced equipment, allows us to bring our customers' most ambitious designs to life. We believe that by mastering the art of the micro-via, we can continue to be at the forefront of the electronics revolution, helping our partners build the next generation of smaller, faster, and more powerful products.
