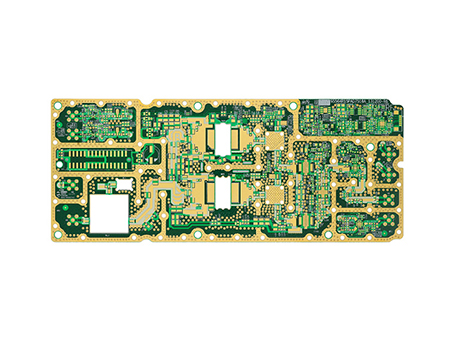

Rules for Micro-Pitch PCB Pads: How to Achieve Reliable Soldering at 0.3 mm Pitch

Instrumentation devices are becoming more compact and more demanding, driving widespread adoption of 0.3 mm and 0.4 mm micro-pitch PCB pads. However, many engineers struggle with these ultra-fine geometries: “0.3 mm pitch is thinner than a strand of hair—how do I solder this without bridging?” Production supervisors echo the same frustration: “Micro-pitch pads are too fragile. One slight deviation and the entire board fails.”

As an industry veteran experienced with high-precision assembly, PCBGOGO achieves ±30 μm placement accuracy, enabling stable and repeatable soldering even at 0.3 mm pitch. This article outlines practical “survival rules” for micro-pitch pad design and manufacturing, helping engineers eliminate solder bridging, cold joints, and low-yield issues.

1. Why Micro-Pitch PCB Pads Are So Challenging

1.1 The inherent “survival difficulty” of micro-pitch pads

Micro-pitch pads (≤0.5 mm) present a unique challenge primarily because the spacing is extremely narrow:

• Small variations in solder paste volume cause immediate issues.
  Too much → solder bridging
  Too little → insufficient solder / cold joints

• Placement deviation of even 0.05 mm can reduce effective spacing by 17%, resulting in instant failure during reflow.

This environment is like trying to walk through a narrow hallway—any misalignment causes a collision.

1.2 Industry standards that define the minimum requirements

Micro-pitch designs are strictly governed by IPC-7095 and IPC-A-610G Class 3:

• Pitch must be ≥ 2× solder paste thickness
  Example: 0.1 mm paste → spacing ≥ 0.2 mm

• BGA micro-pitch pads must maintain:

• Voiding ≤5%

• Zero bridging tolerance

• If these standards are not met, long-term reliability in instrumentation applications cannot be guaranteed.

1.3 The most common failure causes

1. Poor-quality stencils
   Chemical-etched stencils have rough edges that cause random solder volume variations—unacceptable for 0.3 mm pitch.

2. Insufficient placement accuracy
   Legacy pick-and-place machines with >0.1 mm deviation effectively eliminate the spacing between pads.

3. Improper reflow soldering profile
   Incorrect peak temperature or ramp-up rate causes incomplete wetting, oxidation, or bridging.

4. PCB design defects
   Inconsistent pad size, oversized solder mask openings, and poor pad-to-mask alignment often cause solder spread and bridging.

2. Practical Guide: Reliable Soldering for Micro-Pitch Pads

2.1 Design Stage: Give micro-pitch pads enough room to “survive”

1. Pad dimensions and spacing

For 0.3 mm pitch, recommended values include:

• Pad diameter: 0.20 mm

• Ratio guideline: Pitch : Pad = 3 : 2

• Solder mask expansion: +0.05 mm

This prevents solder mask encroachment and ensures consistent solder volume.
PCBGOGO’s free DFM review checks pad ratios and automatically suggests corrections if geometric rules are not met.

2. Substrate selection

Use high-performance substrates with low CTE such as Rogers RO4350B (ISO 13485 compliant). Low expansion reduces pad shift during reflow and minimizes the risk of bridging.

PCBGOGO supports free prototyping with high-grade substrates, enabling accurate design validation early in development.

3. Layout optimization

Keep micro-pitch pads free from nearby routing.
Maintain at least 0.2 mm keep-out around the pad area to prevent solder flow interference.

PCBGOGO’s intelligent panelization tools further improve board utilization without compromising manufacturability.

2.2 Manufacturing Stage: How PCBGOGO Ensures Stable Micro-Pitch Assembly

1. High-precision stencil fabrication

Micro-pitch pads require laser-cut stencils:

• Smooth aperture walls

• Dimensional accuracy: ±0.01 mm

• For 0.3 mm pitch, stencil aperture: 0.18 mm

PCBGOGO produces laser-cut stencils in-house with 24-hour turnaround.

2. Precision component placement

Using PCBGOGO’s ASM/Siemens high-speed SMT systems:

• Placement accuracy: ±30 μm

• Repeatability: ±15 μm

SPI solder paste inspection verifies volume consistency; any deviation >±15% is flagged and corrected before reflow, preventing downstream defects.

3. Optimized reflow soldering

PCBGOGO adopts nitrogen reflow soldering:

• Oxygen level: ≤1000 ppm

• Peak temperature: 245 ± 5°C

• Profile: slow ramp-up, short soak, controlled cooling

This minimizes oxidation, improves solder flow, and prevents excessive paste spread.

Post-reflow inspection includes:

• 3D AOI (EAGLE 3D)

• Nikon / UNI X-RAY void inspection

Yield rates consistently reach 99.8%.

2.3 Inspection & Rework: Ensuring Long-Term Reliability

1. Full-process reliability testing

Beyond AOI/X-RAY, PCBGOGO performs:

• Shear tests (≥1.5 N per joint)

• Compliance with IPC-7095 requirements

2. Precision rework station

For rare bridging cases, PCBGOGO uses:

• Controlled rework temperature: 350 ± 10°C

• Ultra-fine 0.1 mm soldering tips

• Localized heating to avoid pad damage

This enables safe repair without affecting neighboring pads.

Conclusion: Micro-Pitch Pads Are Manageable with the Right Process

Micro-pitch PCB pads are not inherently problematic. With proper design ratios, substrate choices, high-precision equipment, and optimized soldering processes, even 0.3 mm pitch can achieve stable, high-yield assembly.

PCBGOGO provides exactly these capabilities:

• Free DFM analysis

• High-precision SMT placement & stencil fabrication

• Optimized reflow processes

• Comprehensive AOI/X-RAY inspection

Together, these ensure that micro-pitch pads perform reliably across demanding instrumentation applications.
