Offline AOI in PCB Manufacturing: How It Works, Benefits, and When You Should Use It

In the complex world of Printed Circuit Board (PCB) manufacturing, Automated Optical Inspection (AOI) is the gatekeeper of quality. Most manufacturers are familiar with Inline AOI ------ systems integrated directly into the Surface Mount Technology (SMT) line for real-time, high-speed inspection. However, a critical, versatile, and often necessary alternative exists: Offline AOI.

Offline AOI systems operate independently, providing a powerful, flexible solution for specialized inspection tasks that can't or shouldn't be performed at line speed. Understanding how these machines work and where they fit into your operation is key to achieving robust quality control and process optimization.

How Offline AOI Works in PCB Manufacturing

Unlike their inline counterparts, Offline AOI machines require manual intervention to feed boards into the system. This allows them to function as detailed analysis stations rather than simple go/no-go production checkers.

The 4-Step Process:

1. Programming & Setup: An operator loads the PCB file (CAD data) and creates an inspection program that specifies illumination, camera angles, and defect criteria for specific areas of the board.

2. Manual Loading: The operator physically places a single PCB or a pallet/fixture containing several boards into the Offline AOI chamber.

3. Inspection Cycle: The system utilizes high-resolution cameras, specialized lighting (often multi-angle/multi-color LED arrays), and proprietary software to capture images. It compares the captured images against the programmed "golden board" data (or CAD references) to identify differences, such as missing components, incorrect polarity, solder bridges, or lifted leads.

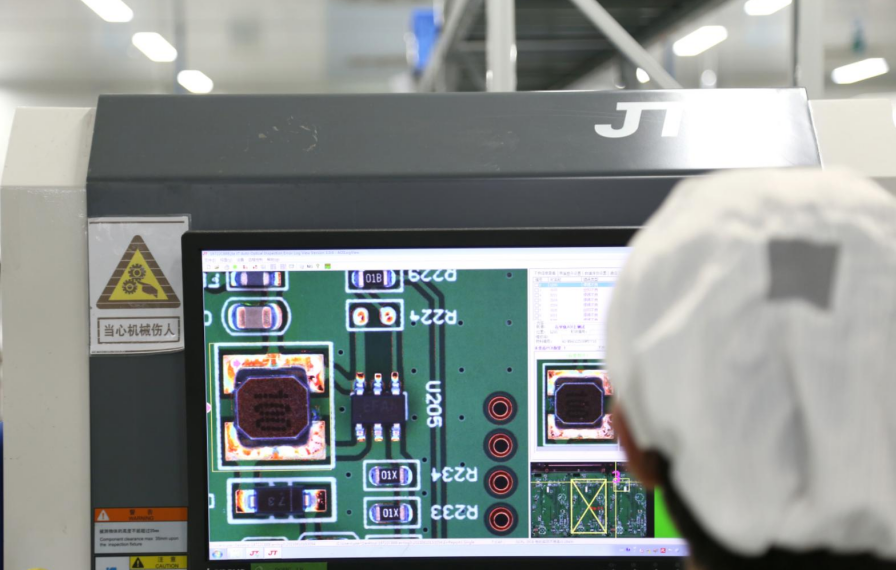

4. Verification & Reporting: The results are displayed, flagging potential defects. The operator can then visually verify the fault, classify it, and generate detailed reports for process engineers or the rework station.

The Key Benefits of Choosing Offline AOI

The separation from the high-speed production line unlocks several unique advantages for quality control and operational flexibility.

• Flexibility for High-Mix, Low-Volume (HMLV): Offline AOI is perfect for manufacturers who frequently switch products. Program changes and setup adjustments can be made quickly without stopping or reconfiguring the main SMT line.

• Deep Dive Defect Analysis: Since the unit isn't constrained by line cycle time, it can execute longer, more complex inspection routines. This allows for detailed analysis of sophisticated solder joints (like BGA/CSP), fine-pitch components, and obscure defects—ideal for root cause analysis.

• Rework and Repair Verification: After a board has been flagged for a defect and subsequently repaired, the Offline AOI serves as the perfect station to re-inspect the repair to ensure it meets quality standards before shipping.

• Lower Investment and TCO: Offline AOI systems typically have a lower initial capital expenditure and simpler integration costs, making them a more accessible quality control solution for smaller manufacturers or specialized inspection labs.

When You Should Use an Offline AOI System

While Inline AOI maximizes throughput, Offline AOI maximizes quality intelligence and flexibility. Here are the most critical scenarios where it excels:

1. First Article Inspection (FAI) and NPI

When bringing a New Product Introduction (NPI) to the line, the first few boards are the most critical. Using the Offline AOI ensures a slow, 100% thorough inspection of the first assembly run. This validates the SMT program, stencil design, and component placement before committing to a full production run, saving substantial time and material costs.

2. Batch Sampling and Auditing

If your production runs for days and you don't need 100% inline inspection (or if the inline AOI is post-solder reflow), you can pull periodic samples (e.g., every 50th board) for a detailed audit on the offline unit. This provides a statistical quality check without interrupting flow.

3. Specialized and High-Reliability Boards

For PCBs destined for demanding applications (medical, aerospace, military, or high-end automotive), a second, independent check is often required. Offline AOI is the perfect platform for this secondary audit, ensuring compliance with the highest standards.

4. Non-Standard Assemblies

Any assembly that requires special fixturing, very long scan times, or manual handling (e.g., very large boards, boards with tall connectors, or assemblies needing multiple-pass inspections) is best handled by a flexible, dedicated Offline AOI system.

Conclusion: A Strategic Investment in Quality

Offline AOI is not a replacement for Inline AOI; it is a complementary, strategic tool that addresses different quality challenges in the PCB manufacturing process. PCBGOGO prioritizes comprehensive quality checks, leveraging these advanced inspection methods to ensure the components and final assembly meet tight tolerances and reliability demands. Contact us now!
