How Does Laser Soldering Meet Requirements for Flex PCB with Gold Finger?
In the rapidly evolving sectors of consumer electronics, automotive systems, and telecommunications, the integration of high-density Flexible Printed Circuits (FPC) with rigid boards has become a standard. In these complex designs, the soldering quality of a Flex PCB with Gold Finger directly determines the product's reliability and operational lifespan.
This article explores why laser technology is the superior choice for meeting the rigorous requirements of FPC assembly and how to ensure every solder joint meets industry standards.
Why is Soldering a Flex PCB with Gold Finger So Difficult?
The Nature of FPC
A Flexible Printed Circuit (FPC) utilizes a Polyimide (PI) film base laminated with copper foil. Unlike traditional rigid boards, it can be bent, folded, and twisted. While this allows for incredible space-saving designs, it introduces structural vulnerabilities at the connection points.

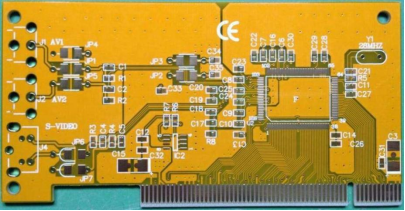

The Challenge of Gold Fingers
The "Gold Finger" area is created by removing the protective PI layer to expose the copper foil. Because the copper is ultra-thin and lacks the rigidity of a standard board, it is extremely fragile.
Common technical hurdles include:
Mechanical Stress: The soldering points have a very low tolerance for shear stress, leading to fractures or pad lifting during handling.
Manufacturing Yield: Traditional soldering methods often result in "pseudo-soldering" (insufficient wetting), causing intermittent signal failures.
Fragility: Without proper reinforcement, the transition zone between the flexible body and the rigid solder point is prone to snapping.
The Laser Soldering Advantage
To solve these issues, many high-end manufacturers are turning to laser soldering for any Flex PCB with Gold Finger. At PCBGOGO, we utilize specialized laser techniques that can precisely manage heat delivery. This reduces the mechanical stress on the fingers and significantly boosts the assembly yield.
Why Choose Laser Over Traditional Irons?
Precision Energy Control: Lasers provide a localized heat source, preventing the delicate PI substrate from scorching or deforming.
High-Density Compatibility: It is the ideal solution for fine-pitch gold fingers used in 5G modules and high-resolution camera sensors.
Consistent Quality: Automated laser systems remove the human error associated with manual soldering, ensuring every joint is identical.
Standards for High-Quality Solder Joints
To ensure your Flex PCB with Gold Finger meets rigorous industrial or automotive certifications, the solder joints must adhere to the following inspection criteria:
Placement & Height: For surface-mount components, the solder should cover at least 2/3 of the terminal height. For through-hole pins, the pin height should ideally be between 1.5mm and 2.0mm.
Joint Geometry: The solder joint should be conical in shape and completely encompass the pad. On double-sided boards, you must ensure solder penetration (wicking) with a climb height of at least 0.5mm.
Surface Finish: The joint must be smooth, bright, and free of black spots, pinholes, or exposed copper. There should be no residual flux or contaminants.
Mechanical Bonding: The solder must fully wet the contact surfaces. There should be no "cold joints" or cracks visible under magnification at the interface of the lead and the pad.
Alignment: Any connectors or headers attached must be flush against the board. A "float" height of more than 0.5mm is typically considered a failure in high-precision applications.
Conclusion
As electronics continue to shrink, the demand for precision in Flex PCB with Gold Finger assembly will only increase. Moving away from traditional soldering irons toward laser-based solutions is the most effective way to reduce fracture risks and ensure the long-term stability of your modules.
At PCBGOGO, we provide end-to-end support for flexible, rigid-flex, and HDI boards. From advanced surface treatments like ENIG and Hard Gold to specialized FPC+PCB integration, we ensure your designs are optimized for the highest manufacturing yields.
