Copper pour is one of the most critical elements of PCB design. Beyond simply carrying current, copper pour directly influences electromagnetic interference (EMI) performance, thermal dissipation efficiency, and the long-term reliability of electronic products.

As consumer electronics become smaller and more powerful—with rising integration and increasing power density—the importance of proper copper-pour design grows dramatically. A TWS earphone brand once experienced overheating issues due to insufficient copper area, with the product reaching more than 60°C after 1 hour of continuous use. A smart-router manufacturer failed CE certification because the grounding copper pour created excessive EMI.

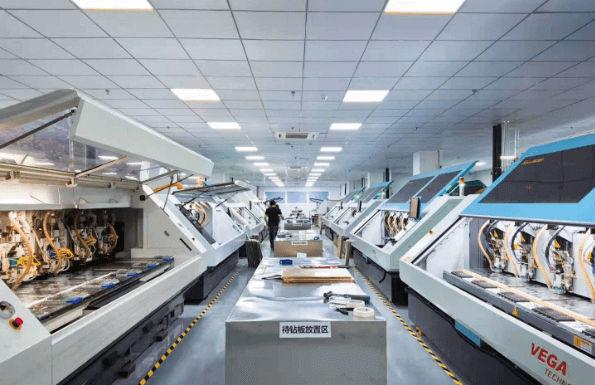

PCBGOGO has served over 1.2 million hardware engineers worldwide. With its proprietary DFM inspection system and four in-house manufacturing bases equipped with high-precision copper-plating and etching lines, PCBGOGO ensures seamless alignment between copper-pour design and manufacturability.
This article breaks down the core principles of copper-pour design according to IPC-2221 and IPC-6012, providing hardware engineers with actionable EMI and thermal-optimization strategies.

1. Understanding Copper Pour: Functions & Key Design Factors

1.1 Core Functions of PCB Copper Pour

Copper pour serves four essential purposes:

1. Current conduction – reduces impedance and power loss.

2. Electromagnetic shielding – forms a Faraday cage to suppress EMI.

3. Heat dissipation – increases thermal spreading area to lower component temperature.

4. Mechanical reinforcement – improves PCB rigidity and prevents warpage.

Common copper-pour types in consumer electronics include:

• Solid pour: for low-frequency or high-power products (e.g., smart sockets).

• Hatched pour (grid pour): for high-frequency layouts (e.g., 5G routers) to reduce parasitic capacitance.

• Local copper pour: for compact devices (e.g., smartwatches), targeted for heat spreading.

1.2 Key Design Parameters

Copper Thickness

Typical values: 1 oz (35 μm), 2 oz (70 μm)

• 1 oz copper with 1 mm width carries approx. 1 A continuous current (IPC-2221).

• High-power areas (charging ICs, PMICs) require 2–4 oz copper.

Copper Area

• Copper area ≥ 1.5× component footprint for thermal parts.

• For CPUs and power ICs: ≥ 2 cm2 solid pour recommended.

Grounding Strategy

• Single-point ground → low-frequency circuits

• Multi-point ground → high-frequency circuits (impedance ≤ 0.1 Ω)

• Star-grounding → mixed-signal systems

1.3 Manufacturing Reliability: PCBGOGO’s Process Strength

PCBGOGO ensures copper-pour manufacturing accuracy through:

• Automatic PTH machines ensuring hole-copper uniformity ±10%

• Cosmic etching lines with edge-profile deviation ≤ ±0.02 mm

• Hitachi NDA800X copper-thickness testers with ±1 μm accuracy

These capabilities ensure that design intent is faithfully reflected in mass production.

2. Practical Guide: End-to-End Copper-Pour Design Process

2.1 Choose the Right Copper Thickness & Pour Type

Tools: Altium Designer, PADS
Support: PCBGOGO’s free DFM engineering consultation

2.2 Copper-Pour Layout for EMI Reduction

Key Rules

• Separate analog GND and digital GND, join via single-point (0-Ω resistor or bead)

• Keep ≥ 3 mm spacing between AGND and DGND

• Avoid closed-loop copper: if unavoidable, loop area ≤ 5 cm2

• For high-frequency (> 2.4 GHz) traces, keep copper clearance 0.3–0.5 mm

Tools: Ansys SIwave, PCBGOGO DFM copper-risk detection

2.3 Thermal-Optimized Copper-Pour Design

Best Practices

• Thermal copper ≥ 1.5× device size

• Copper thickness for power ICs: ≥ 2 oz

• Thermal vias:

• Diameter 0.3–0.5 mm

• Pitch 2–3 mm

• Minimum 4 vias, evenly distributed

• Copper-to-pad neck width ≥ 0.5 mm

Tools: Flotherm thermal simulation, PCBGOGO case library

2.4 Align Copper-Pour Layout with Manufacturing Capability

Design for Manufacturability Rules

• Minimum copper connection width ≥ 0.2 mm

• Copper-to-pad spacing ≥ 0.1 mm

• Leave ≥ 5 mm process edge for solid-pour boards

• PCBGOGO capability:

• Inner/outer layer copper: 1–6 oz

• Copper-uniformity tolerance ±10%

Tools: PCBGOGO online order system + automatic DFM analysis

3. Case Study: Optimizing Copper Pour for a 20W Smart Charger

3.1 Initial Problems

A consumer-electronics manufacturer encountered multiple issues:

• Used 1 oz copper; thermal copper area only 1 cm2
  → Power IC reached 75°C (limit is 60°C)

• Analog & digital ground mixed
  → EMI excessive, ripple 100 mV (spec ≤ 50 mV)

• Copper-to-pad spacing 0.05 mm
  → 3% short-circuit failure rate

3.2 Corrective Actions

Thermal improvements

• Upgraded to 2 oz copper

• Expanded pour area to 3 cm2

• Added 6 thermal vias (0.4 mm, 2 mm spacing)

EMI improvements

• Used single-point grounding, AGND–DGND separated by 5 mm

• HF switching area reserved 0.5 mm copper clearance

Manufacturing alignment

• Adjusted copper-to-pad spacing to 0.1 mm

• Added 6 mm process edge

• Chose PCBGOGO’s Guangde base with high-precision PTH and plating lines

3.3 Final Results

• Temperature dropped from 75°C → 55°C

• Ripple noise reduced from 100 mV → 35 mV

• Production yield improved to 99.8%

• Short-circuit defects decreased from 3% → 0.1%

Conclusion

Effective PCB copper-pour design requires balancing functionality, EMI control, and thermal performance, while ensuring the design aligns with manufacturing constraints.

Key takeaways for hardware engineers:

1. Match copper thickness & pour type to power and frequency.

2. Optimize EMI, avoid closed loops, and properly separate grounds.

3. Maximize thermal copper, use thermal vias, and avoid bottleneck traces.

4. Always integrate manufacturability early—leveraging DFM tools and communication with your PCB manufacturer.
